LED Display Six Common Ways To Install
1. Suspended type
1) This installation method is mostly used indoors and semi-outdoors
2) It is generally used at the entrance of passages and corridors, and also at the entrances of stations, railway stations, subway entrances, etc
3) It is used for traffic guidance on highways, railways and highways
4) The screen design generally adopts an integrated cabinet design, or a hoisting structure design
2. Inlay installation method
1) The entire LED display body is embedded in the wall, and the display plane is at the same level as the wall
2) Generally, a simple box design is adopted
3) General use of front maintenance (front maintenance design)
4) This installation method is used indoors and outdoors, but it is generally used with a screen with a small pitch and a small display area.
5) Generally used at the door of the building, the hall of the building, etc
3. Column type (single column and double column)
There are many column installation methods, generally used as outdoor billboards:
1) Single column installation method: suitable for small screen applications
2) Double column installation method: suitable for large-screen applications
3) Closed maintenance channel: suitable for simple box
4) Open maintenance channel: suitable for standard boxes

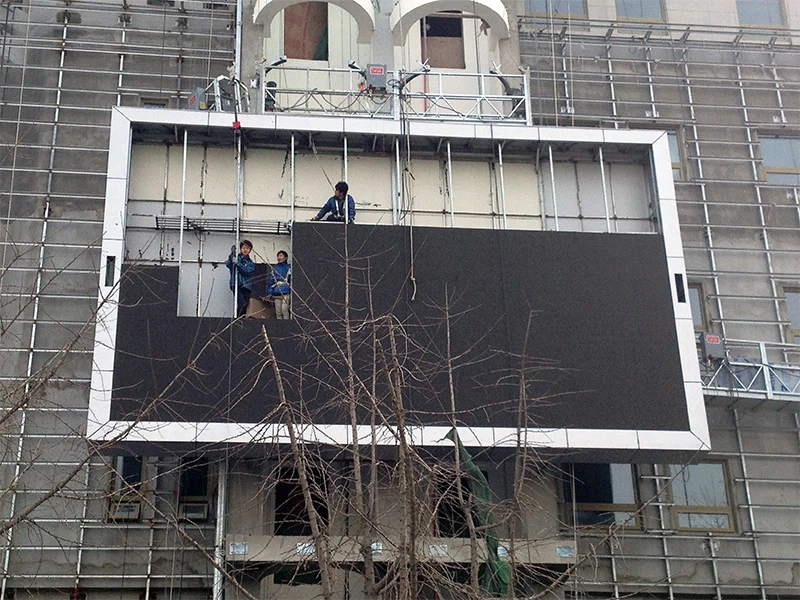

4. Wall-mounted installation method
1) This installation method is usually used indoors or semi-outdoors
2) The display area of the screen body is small, generally there is no maintenance channel space, the whole screen is removed for maintenance, or made into a folding integrated frame
3) The screen body area is slightly larger, generally using front maintenance design (that is, front maintenance design, usually using column assembly method)
5. Roof installation
1) This installation method display and steel frame structure can resist wind is a key
2) Generally, it is installed with an inclined angle, or the module adopts a beveled edge design
3) Mostly used for outdoor advertising display
6. Rental lifting method
Notes:
The ceiling screen should not be made bigger. Generally required to be below 6M*10M. Exceptions to special cabinet materials and strip patterns.
The top is equipped with a hanging beam and the bottom is equipped with a bottom beam. Hanging beams are used to lift the screen.
Between the row and the row box, it is connected by a lifting mechanism, and the lock is tightened between the horizontal box.
Lifting mechanism is divided into: gear type, taper rod type, bolt type.
There are the following different characteristics:
1. Gear type is more expensive and beautiful,
2. The taper type is moderately priced and reliable.
3. The bolt type is cheap, reliable, and the assembly is more troublesome, suitable for the
