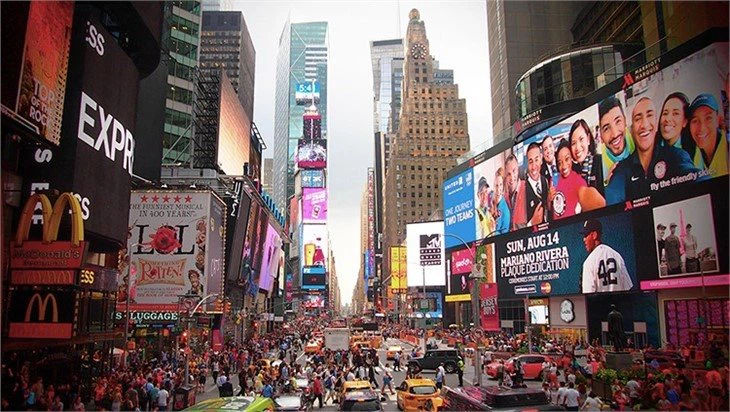

LED Signage

Item

P20

Pixel Pitch

20mm

LED Type

DIP346

Module Resolution

16dots × 8dots

Driving Mode

static

Module Pixels

128dots

Module Size

320mm × 160mm

Cabinet Size

960mm × 960mm

Cabinet Resolution

48dots × 48dots

Pixel Density

2,500dots/㎡

Best Viewing Distance

≥20m

Brightness

6000nits

IP Grade

IP65

Refresh Rate

1,920Hz～3,840Hz(depends on IC driver solution)

Gray Scale

14bits～22bits(depends on IC driver and controller solution )

Viewing Angle

H:110° / V:55°

Maximum Power Consumption

500W/㎡

Average Power Consumption

160W/㎡

Input Voltage

AC110V～AC220V @ 50Hz / 60Hz

Operating Temperature

﹣20℃～50℃

Operating Humidity

10%～90%

Cabinet Material

Iron / Aluminum

Cabinet Weight

65kg/㎡ or 55kg/㎡

Operating System

Windows (Win7, Win10, etc.)

Signal Source Compatibility

DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

‹ Front and rear dual maintenance

Front and rear the two maintenance methods, with different priorities, customers can choose the appropriate maintenance methods according to the site situation

High Flatness ›

The cabinet adopts mold stamping edge process, high strength; CNC precision machining, accurate size, good consistency

‹ High Definition Picture

Equipped with new drive IC, optimize light and dark contrast, providing pure, authentic, accurate colorful color vision
