Waterproof Outdoor Video Led Wall
The LUM and the LMA have a lot in common, but the LMA is an updated version of the LUM with more features.LUM is an waterproof outdoor video led wall. Hub connection. The whole panel adopts Hub connection between module and receiver for signal and power. In addition, Without environmental constraintsand support the removal of modules in front and back for maintenance.
Product Introduction
Products Description
The LUM and the LMA have a lot in common, but the LMA is an updated version of the LUM with more features.LUM is an waterproof outdoor video led wall. Hub connection. The whole panel adopts Hub connection between module and receiver for signal and power. In addition, Without environmental constraintsand support the removal of modules in front and back for maintenance.
Standby power port
The module is equipped with two power ports, one as a common port, one as a standby port, the product life is longer.

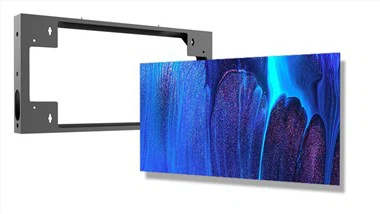

Multiple structured modules
Aluminum alloy backplane design, strong heat dissipation performance, high quality insulation adhesive, good sealing
Convenient maintenance mode
Support front and rear maintenance, central control box can be disassembled
More secure connections
The interface is directly linked, and the installation process is efficient
Led hd display screen for advertising outdoor.This product excellent performance, advanced structure, comprehensive cost-effective, can perfectly adapt to a variety of miscellaneous application scenarios, suitable for all kinds of outdoor scenes, advertising signs, roads, stations, shopping malls, landmarks and so on.

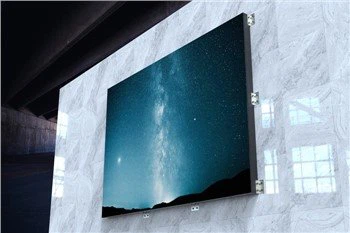

Product Picture
Outdoor use scenario
advertising signs
Road public display
Car screen
Ground screen
FAQ.
How many years can the LED display be used?
Although longevity is one of the main characteristics of LEDs, there are many elements that affect the overall life of LED display. The main factors affecting the service life of the display are: product quality, use environment, usually, because the outdoor display is dusty, and the outdoor display is dusty, and the outdoor display is dusty. The unfavorable factors such as sunlight and rainwater are relatively short. Usually less than 5 years, and the indoor display is usually 5-8 years. In particular, in the actual use process, we find that the quality and experience of the LED display and the experience during installation are often the most important factor affecting the life of the display. Many LED electronic displays are often damaged in less than 3 years. It has a lot to do with quality and installation.
More information
| PARAMETER | |||||
| Item | P3.91 | P4.81 | P6.25 | P7.8 | P10.4 |
| Pixel Pitch | 3.906mm | 4.807mm | 6.25mm | 7.8125mm | 10.417mm |
| LED Type | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Module Resolution | 128dots × 64dots | 104dots × 52dots | 80dots × 40dots | 64dots × 32dots | 48dots x 24dots |
| Driving Mode | 1/16scan or 1/8scan | 1/13scan or 1/7scan | 1/5scan | 1/4scan | 1/2scan |
| Module Pixels | 8,192dots | 5,408dots | 3,200dots | 2,048dots | 1,152dots |
| Module Size | 500mm × 250mm | ||||
| Cabinet Size | 1000mm × 1000mm or 1000mm × 500mm | ||||
| Cabinet Resolution (1000mm × 1000mm) | 256dots × 256dots | 208dots × 208dots | 160dots × 160dots | 128dots × 128dots | 96dots × 96dots |
| Pixel Density | 65,536dots/㎡ | 43,264dots/㎡ | 25,600dots/㎡ | 16,384dots/㎡ | 9,216dots/㎡ |
| Best Viewing Distance | ≥3.9 m | ≥4.8 m | ≥6.2 m | ≥7.8 m | ≥10 m |
| Brightness | 4500nits or 6000nits | 6500nits or 9000nits | 6500nits or 9500nits | 6500nits or 10000nits | |
| IP Grade | IP65 | ||||
| Refresh Rate | 1,920Hz～3,840Hz(depends on IC driver solution) | ||||
| Gray Scale | 14bits～22bits(depends on IC driver and controller solution ) | ||||
| Viewing Angle | H:110° / V:110° | ||||
| Maximum Power Consumption | 800W/㎡ | 800W/㎡ | 720W/㎡ | 650W/㎡ | |
| Average Power Consumption | 265W/㎡ | 265W/㎡ | 240W/㎡ | 220W/㎡ | |
| Input Voltage | AC110V～AC220V @ 50Hz / 60Hz | ||||
| Operating Temperature | ﹣20℃～50℃ | ||||
| Operating Humidity | 10%～90% | ||||
| Cabinet Material | Aluminum profile | ||||
| Cabinet Weight | 30kg/m2 | ||||
| Operating System | Windows (Win7, Win10, etc.) | ||||
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | ||||
