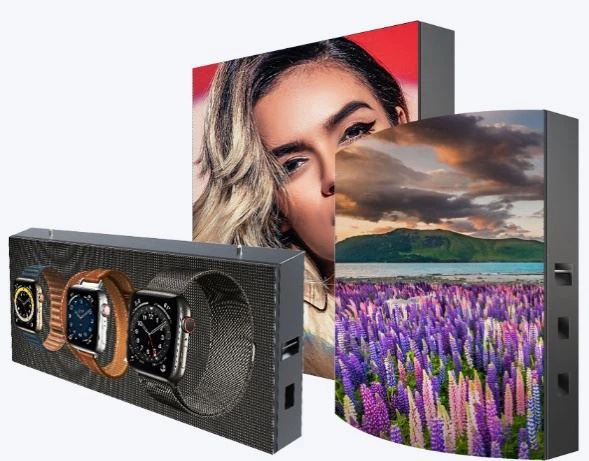

LED Billboard Sign

Item

P6.67

Pixel Pitch

6.667mm

LED Type

SMD2727

Module Resolution

48dots × 24dots

Driving Mode

1/6scan

Module Pixels

1,152dots

Module Size

320mm × 320mm

Cabinet Size

960mm × 960mm

Cabinet Resolution

144dots × 144dots

Pixel Density

22,500dots/㎡

Best Viewing Distance

≥6.67m

Brightness

6000nits

IP Grade

IP65

Refresh Rate

1,920Hz～3,840Hz(depends on IC driver solution)

Gray Scale

14bits～22bits(depends on IC driver and controller solution )

Viewing Angle

H:110° / V:110°

Maximum Power Consumption

680W/㎡

Average Power Consumption

220W/㎡

Input Voltage

AC110V～AC220V @ 50Hz / 60Hz

Operating Temperature

﹣20℃～50℃

Operating Humidity

10%～90%

Cabinet Material

Iron / Aluminum

Cabinet Weight

45kg/㎡ or 38kg/㎡

Operating System

Windows (Win7, Win10, etc.)

Signal Source Compatibility

DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

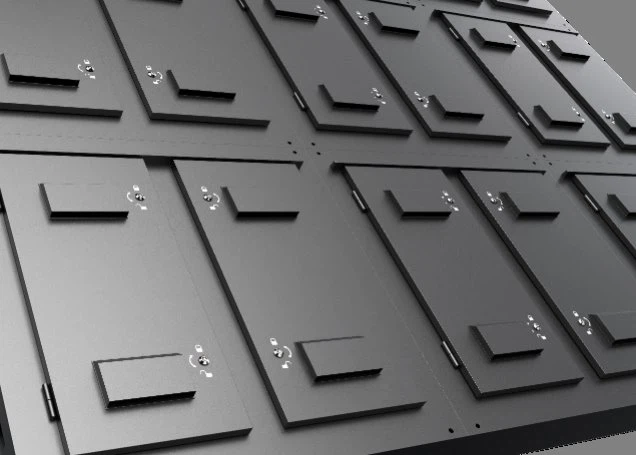

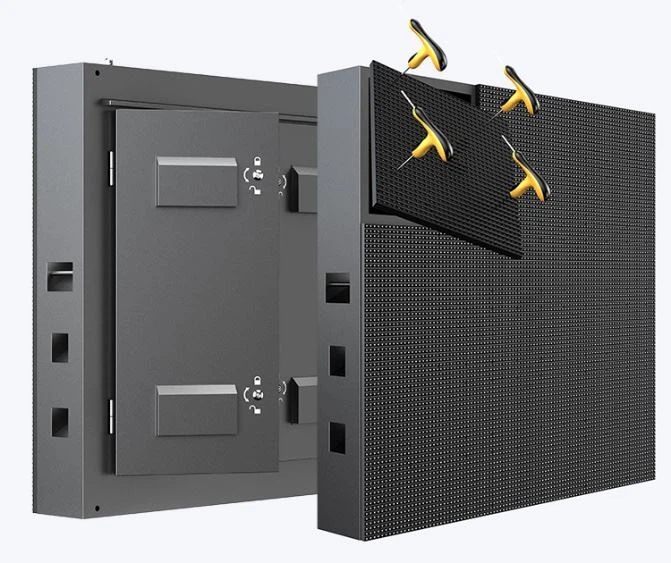

‹ High-efficiency maintenance

With two maintenance methods, it can fit various installation scenarios, with simple operation mode, fast and efficient maintenance, and lower cost

Customize Specification ›

Metal cabinet, high metal malleability, support custom a variety of specification of products, strong creative, different-shaped projects can also be taken in stride

‹ High Flatness

The cabinet adopts mold stamping edge process, high strength; CNC precision machining, accurate size, good consistency

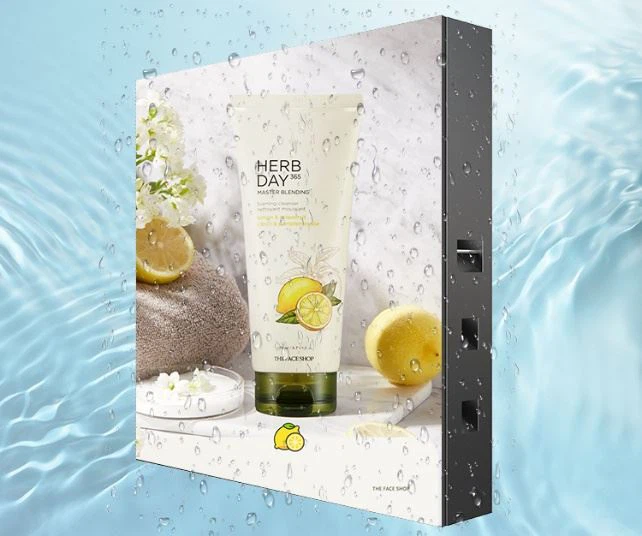

High Protection ›

Adopts full waterproof glue module, tight seam back door, IP65 level protection level, box space sealing, efficient fan can quickly dehumidification and heat removal, maintain a dry and refreshing environment
