LED Display Screen for Advertising Indoor
Indoor led screen is a popular product in Indoor fixed series. Module size is 300*168.75mm, cabinet size is usually 600*337.5mm, cabinet size and screen size can be customized by project requirements.
Product Introduction

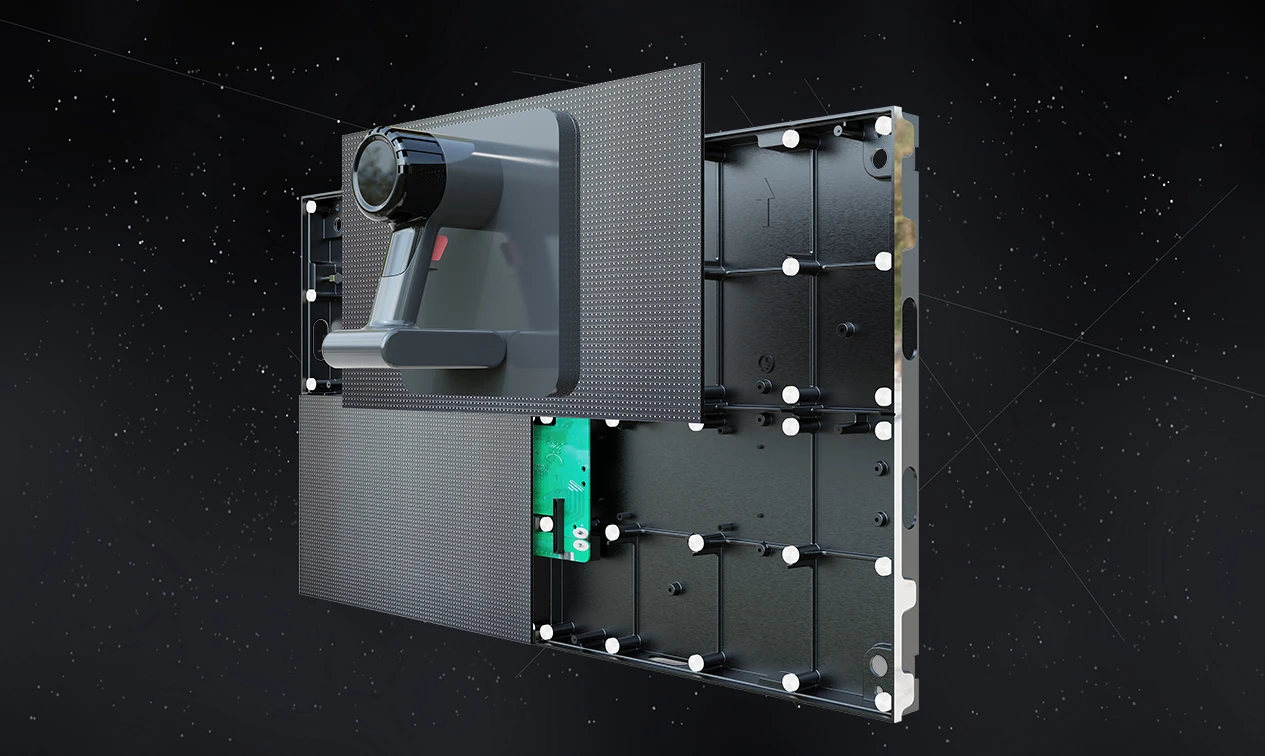

Front maintenance Quick magnetic adsorption front maintenance design easy installation and east maintenance. |  |

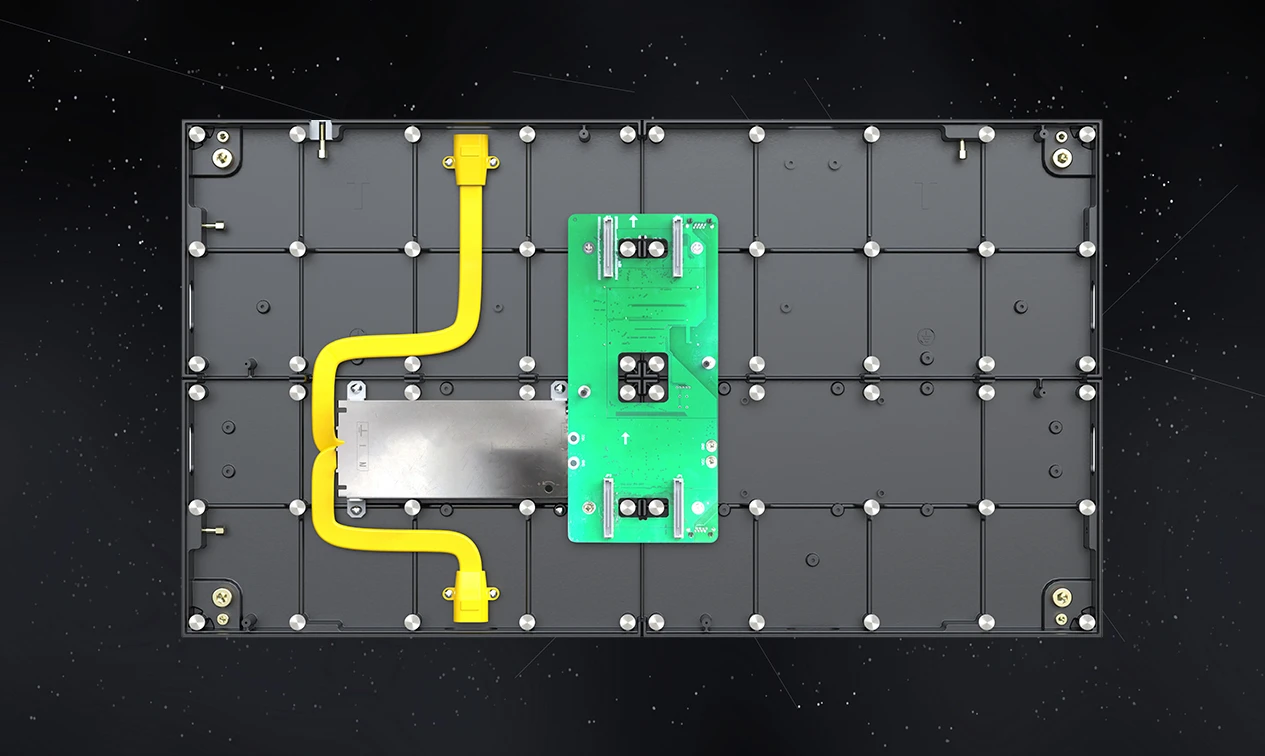

 | Neat cabinet inside Cabinet space neat and concise, lowfailure rate,easy maintenace. |

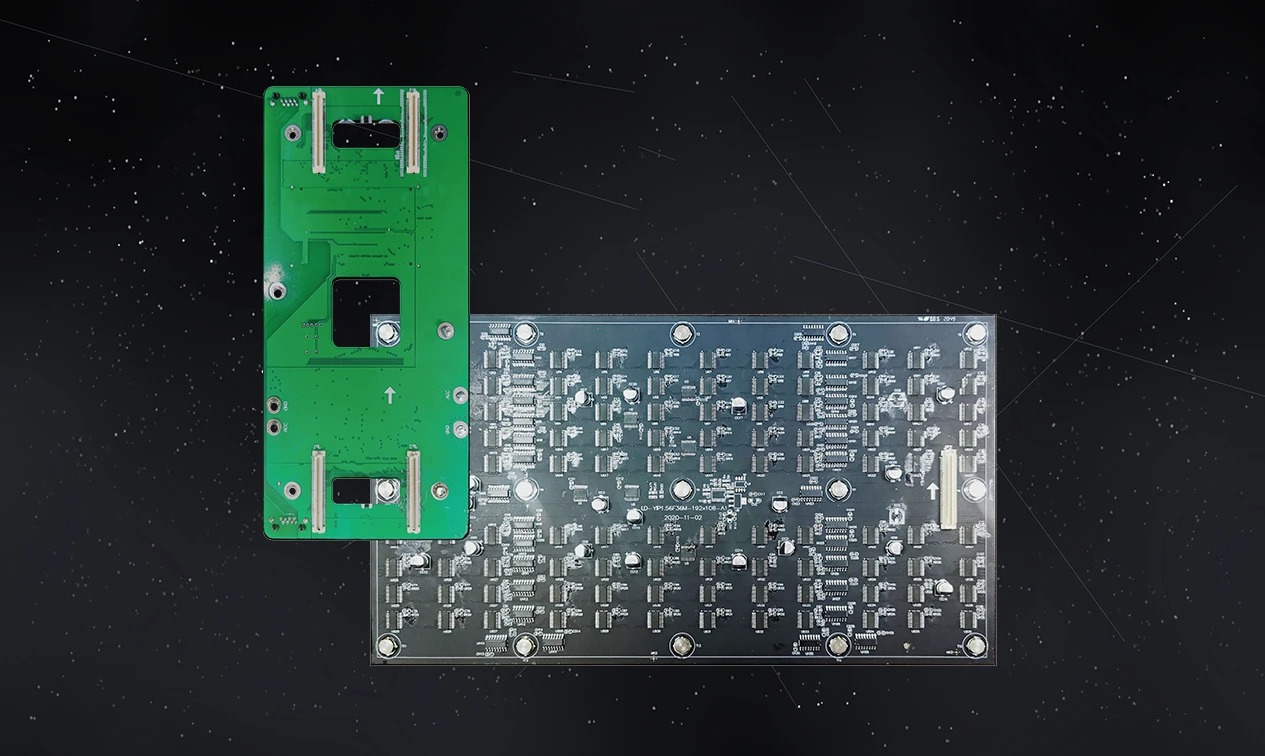

HUB Hard connection Module data transmitted by HUB board, more reliable and stable. |  |

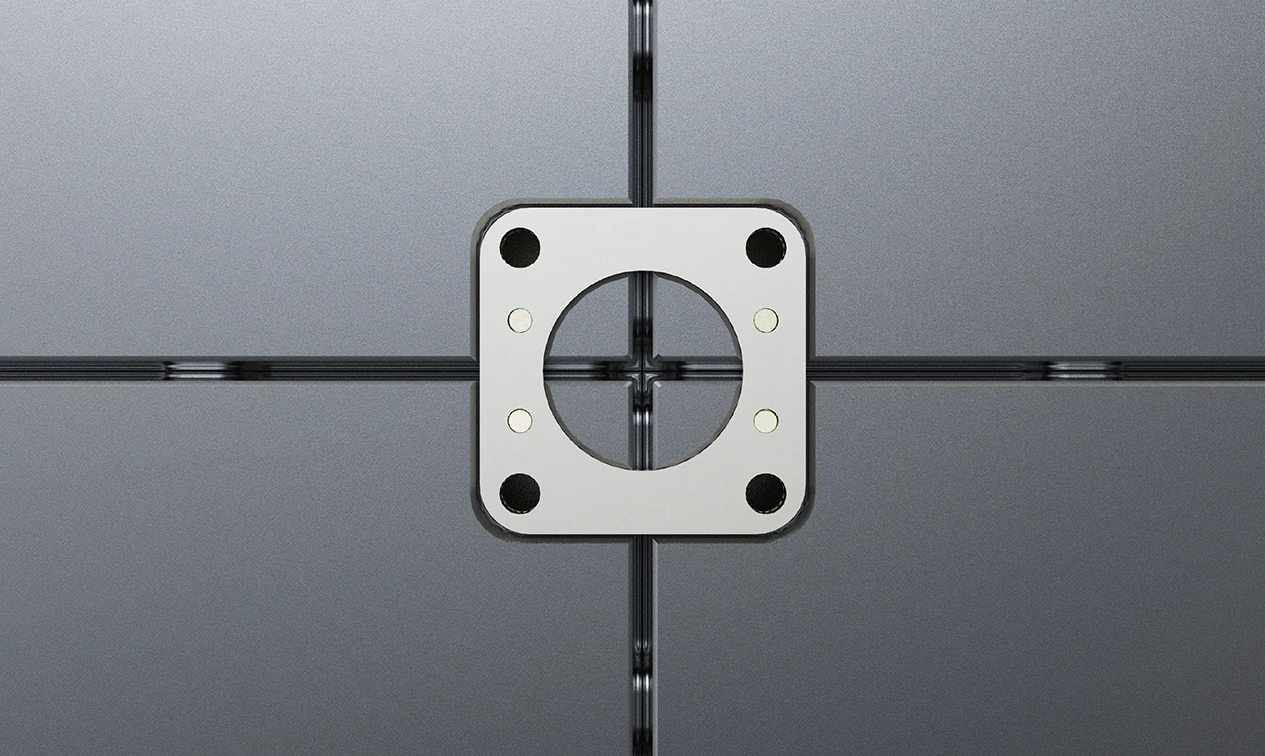

 | High flatness Embedded connection, the connector is installed directy into the cabinet Screen backside without any protrusion, high flatness. |
| PARAMETER | |||||
| Item | P0.9 | P1.25 | P1.56 | P1.875 | P2.5 |
| Pixel Pitch | 0.9375mm | 1.25mm | 1.5625mm | 1.875mm | 2.5mm |
| LED Type | MINI LED | SMD1010 | SMD1212 | SMD1515 | SMD2020 |
| Module Resolution | 320 × 180dots | 240 × 135dots | 192 × 108dots | 160 × 90dots | 120 × 68dots |
| Driving Mode | 1/60scan | 1/45scan | 1/36scan | 1/45scan | 1/32scan |
| Module Pixels | 57,600dots | 32,400dots | 20,736dots | 14,400dots | 8160dots |
| Module Size | 300 × 168.75mm | 300 × 168.75mm | 300 × 168.75mm | 300 × 168.75mm | 300 × 168.75mm |

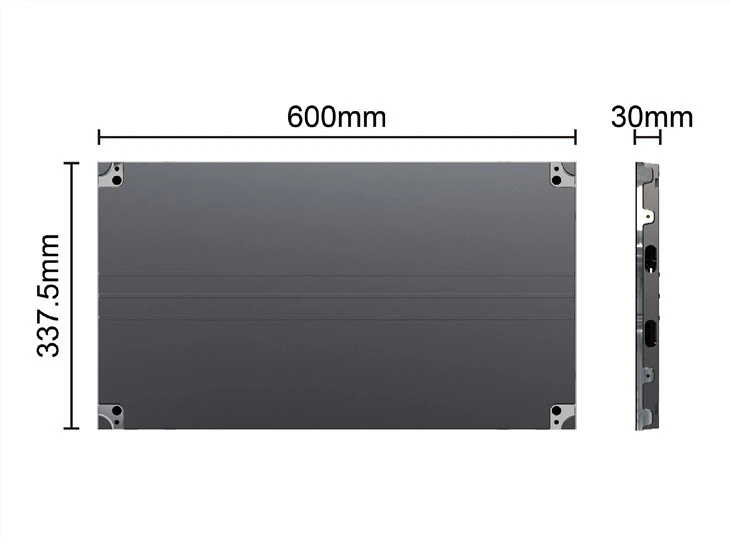

| Cabinet Size | 600mm × 337.5mm × 30mm | ||||
| Cabinet Resolution | 640 × 360dots | 480 × 270dots | 384 × 216dots | 320 × 180dots | 240 × 135dots |
| Pixel Density | 1,137,777dots/㎡ | 640,000dots/㎡ | 409,600dots/㎡ | 284,444dots/㎡ | 160,000dots/㎡ |
| Best Viewing Distance | ≥0.9 m | ≥1.2 m | ≥1.5 m | ≥1.8 m | ≥2.5 m |
| Brightness | 350nits | 400nits | 500nits | 800nits | |
| IP Grade | IP43 | ||||
| Refresh Rate | 1,920Hz～3,840Hz(depends on IC driver solution) | ||||
| Gray Scale | 14bits～22bits(depends on IC driver and controller solution ) | ||||
| Viewing Angle | H:150° / V:150° | H:110° / V:110° | |||
| Maximum Power Consumption | 400W/㎡ | 320W/㎡ | 400W/㎡ | 350W/㎡ | |
| Average Power Consumption | 130W/㎡ | 105W/㎡ | 130W/㎡ | 110W/㎡ | |
| Input Voltage | AC110V～AC220V @ 50Hz / 60Hz | ||||
| Operating Temperature | ﹣20℃～50℃ | ||||
| Operating Humidity | 10%～90% | ||||
| Cabinet Material | Die-casting Aluminum | ||||

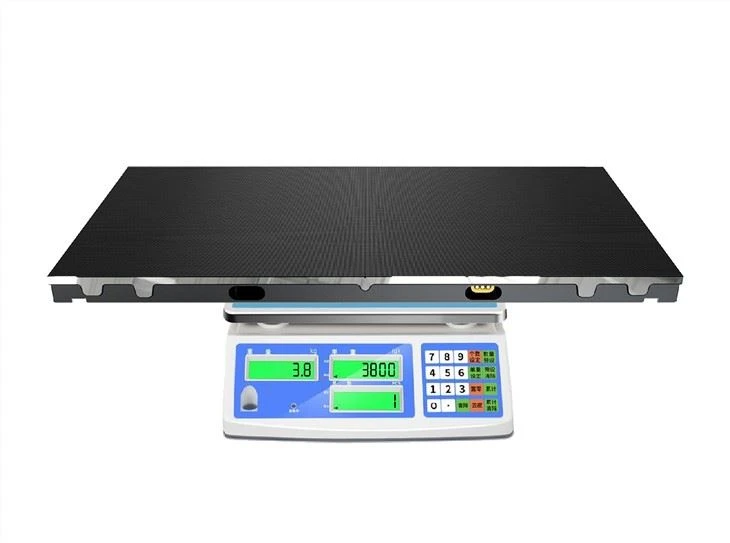

| Cabinet Weight | 3.8kg/panel | ||||
| Operating System | Windows (Win7, Win10, etc.) | ||||
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | ||||
