Double Sided Programmable Led Display
LOF outdoor display, Universal sheet metal box, strong plastic, can be freely customized, free selection of configuration, low maintenance cost, convenient installation, high environmental compatibility, strong cost performance. Outdoor RGB p10 led display module, HDR dynamic display, high gray scale, high brightness, clear and sharp picture display. According to different project requirements, it supports custom box maintenance methods, and all components can be maintained before and after. You can also see the LOF outdoor led display in many outdoor places, such as the outside message waterproof led board, led video billboard signs and so on. It IP degrees reached IP65 level of protection, edge protection against backflow through the cable port, isolation of water vapor corrosion, high degree of sealing of modules and rear doors, dust-proof, waterproof and corrosion-resistant.
Product Introduction
Products Description
With the continuous development of science and technology, LED display has become an indispensable part of people's life, and double sided programmable LED display has attracted people's attention even more and has become a sharp tool for easily conveying information and exchanging culture. LED technology produces bright, vibrant colors that are easy to read even from a distance. Programmable features allow it to display different messages at different times of the day, ensuring your customers always see the latest information. It is widely used in commercial areas, parks, squares, stations, airports, and other places, and has become a good choice for people to carry out information transmission, event promotion, advertising promotion, and other aspects.
Features
- Double-Sided Design: The double sided programmable LED display is double sided, which means you can display your message to customers on both sides of your storefront or on roadside signs. It maximizes the visibility of your advertising campaign from every angle.
- Excellent display performance: The resolution of the screen reaches 1280×768, and the pixel density can reach up to 65536 dots/㎡, so the picture definition is very high. The brightness of 5000-7000 nits can adapt to different ambient light and show the brightest picture. The screen refresh rate of 1920Hz~3840Hz means a smoother picture and shorter response speed and also avoids problems such as screen flickering.
- Durable Design: Our double sided programmable LED display is made of high-strength and lightweight materials such as high-quality iron and aluminum, which has good oxidation resistance and shock resistance. The sealed casing and glue-filled waterproof design make it IP65 rated, able to withstand extreme weather conditions, reducing the time and effort required for maintenance.
Double maintenance
The maintenance mode can be customized.
Hd horizon
High brightness, low gray, and excellent picture can create a perfect visual feast.
Ultra wide perspective
Super wide range of viewing Angle brings barrier-free viewing.
Multi-channel power fan

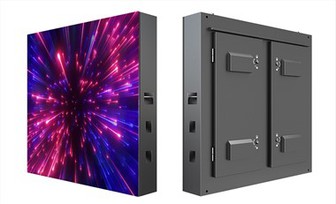

Product Picture
Our factory
FAQ
A set of points that control systems can control?
Communication screen AXX:
Monochrome, two -color 1024 × 64
Communication screen BXX:
Monochrome: 896 × 512 Double color: 896 × 256
DVI dual color screen: 1280 × 768
Dvixx: 1024 × 512
Item | P3.91 | P4.81 | P5 | P6.15 | P6.67 | P8 | P10 | P10 | P16 | P20 |
Pixel Pitch | P3.906mm | 4.807mm | 5mm | 6.154mm | 6.667mm | 8mm | 10mm | 10mm | 16mm | 20mm |
LED Type | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | DIP346 | DIP346 | DIP346 |
Module Resolution | 64dots × 64dots | 52dots × 52dots | 64dots × 32dots | 52dots × 26dots | 48dots × 24dots | 40dots × 40dots | 32dots × 32dots | 32dots × 16dots | 20dots × 10dots | 16dots × 8dots |
Driving Mode | 1/16scan or 1/8scan | 1/7scan | 1/8scan | 1/7scan | 1/6scan | 1/4scan | 1/2scan | 1/4scan | static | static |
Module Pixels | 4,096dots | 2,704dots | 2,048dots | 1,352dots | 1,152dots | 1,600dots | 1,024dots | 512dots | 200dots | 128dots |
Module Size | 250mm × 250mm | 320mm × 160mm | 320mm × 320mm | 320mm × 160mm | ||||||
Cabinet Size | 1,000mm × 1,000mm | 960mm × 960mm | ||||||||
Cabinet Resolution | 256dots × 256dots | 208dots × 208dots | 192dots × 192dots | 156dots × 156dots | 144dots × 144dots | 120dots × 120dots | 96dots × 96dots | 96dots × 96dots | 60dots × 60dots | 48dots × 48dots |
Pixel Density | 65,536dots/㎡ | 43,264dots/㎡ | 40,000dots/㎡ | 26,406.25dots/㎡ | 22,500dots/㎡ | 15,625dots/㎡ | 10,000dots/㎡ | 10,000dots/㎡ | 3,906dots/㎡ | 2,500dots/㎡ |
Best Viewing Distance | ≥3.9m | ≥4.8m | ≥5m | ≥6m | ≥6.67m | ≥8m | ≥10m | ≥10m | ≥16m | ≥20m |
Brightness | 5,000nits or 6,500nits | 6,500nits | 6,000nits | 6,000nits | 6,000nits | 6,000nits | 6,000nits | 7,000nits | 7,000nits | 6,000nits |
IP Grade | IP65 | |||||||||
Refresh Rate | 1,920Hz～3,840Hz(depends on IC driver solution) | |||||||||
Gray Scale | 14bits～22bits(depends on IC driver and controller solution) | |||||||||
Viewing Angle | H:110° / V:110° | H:110° / V:55° | H:110° / V:55° | H:110° / V:55° | ||||||
Maximum Power Consumption | 750W/㎡ or 1000W/㎡ | 1000W/㎡ | 750W/㎡ | 750W/㎡ | 680W/㎡ | 800W/㎡ | 800W/㎡ | 530W/㎡ | 500W/㎡ | 500W/㎡ |
Average Power Consumption | 250W/㎡ or 330W/㎡ | 330W/㎡ | 250W/㎡ | 250W/㎡ | 220W/㎡ | 260W/㎡ | 260W/㎡ | 170W/㎡ | 160W/㎡ | 160W/㎡ |
Input Voltage | AC110V～AC220V @ 50Hz / 60Hz | |||||||||
Operating Temperature | ﹣20℃～50℃ | |||||||||
Operating Humidity | 10%～90% | |||||||||
Cabinet Material | Iron / Aluminum | |||||||||
Cabinet Weight | 45kg/㎡ or 38kg/㎡ | 45kg/㎡ or 38kg/㎡ | 45kg/㎡ or 38kg/㎡ | 45kg/㎡ or 38kg/㎡ | 45kg/㎡ or 38kg/㎡ | 45kg/㎡ or 38kg/㎡ | 45kg/㎡ or 38kg/㎡ | 65kg/㎡ or 55kg/㎡ | 65kg/㎡ or 55kg/㎡ | 65kg/㎡ or 55kg/㎡ |
Operating System | Windows (Win7, Win10, etc.) | |||||||||
Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | |||||||||
