Outdoor Scrolling Led Sign For Business

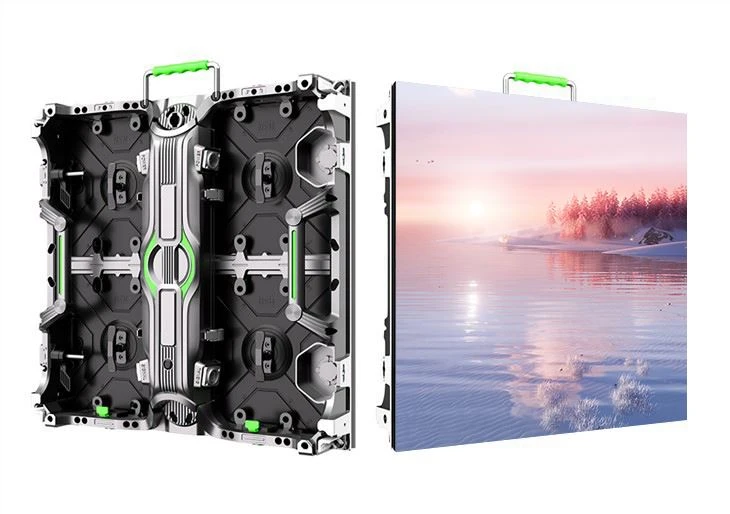

Outdoor 500x500mm rental cabinet, with integrated die-casting Aluminum material and HUB connection,light weight, easy to move and install. IP65 protection.
Product Introduction
Products Description
Outdoor 500x500mm rental cabinet, with integrated die-casting Aluminum material and HUB connection,light weight, easy to move and install. IP65 protection.
Support and single-person quick maintenance, the box body up and down, left and right locks can be quickly disassembled and assembled.
There are lamp guard flips at the four corners of cabinet to protect modules corners and led lamps during transit.
Perfect quick-lock connection structure, diversified cabinet splicing styles, infinite possibilities for creative screen design.
Product Picture
Our factory
FAQ
What is remote control? Under what circumstances?
The so -called remote is not necessarily long -distance. The remote control includes the main control end and the controlled terminal in a local area network, and the space distance is not far away; the main control end and the controlled end are within two types of a relatively long space distance. If the distance is controlled, then use remote control;
What is optical fiber transmission? What is network cable transmission?
The optical fiber transmission is to convert the telecommunications signal into optical signals with transparent glass fiber transmission; network cable transmission is to transmit directly with a direct electrical signal of metal wires;
Item | P1.9 | P2.6 | P2.9 | P3.9 | P4.8 | P5.9 |
Pixel Pitch | 1.953mm | 2.604mm | 2.976mm | 3.906mm | 4.807mm | 5.952mm |
LED Type | SMD1212 | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD2727 |
Module Resolution | 128dots × 128dots | 96dots × 96dots | 84dots × 84dots | 64dots × 64dots | 52dots × 52dots | 42dots × 42dots |
Driving Mode | 1/32scan | 1/16scan or 1/32scan | 1/14scan or 1/ 21scan | 1/16scan or 1/8scan | 1/13scan or 1/7scan | 1/7scan |
Module Pixels | 16,384dots | 9,216dots | 7,056dots | 4,096dots | 2,704dots | 1,764dots |
Module Size | 250mm × 250mm | 250mm × 250mm | 250mm × 250mm | 250mm × 250mm | 250mm × 250mm | 250mm × 250mm |
Cabinet Size | 500mm × 500mm | 500mm × 500mm | 500mm × 500mm | 500mm × 500mm | 500mm × 500mm | 500mm × 500mm |
Cabinet Resolution | 256dots × 256dots | 192dots × 192dots | 168dots × 168dots | 128dots × 128dots | 104dots × 104dots | 84dots × 84dots |
Pixel Density | 262,144dots/㎡ | 147,456dots/㎡ | 112,896dots/㎡ | 65,536dots/㎡ | 43,264dots/㎡ | 28,224dots/㎡ |
Minimum Viewing Distance | ≥1.9m | ≥2.6m | ≥2.9 m | ≥3.9 m | ≥4.8 m | ≥5.9m |
Brightness | 4,000nits | |||||
IP Grade | IP65 | |||||
Refresh Rate | 1,920Hz～3,840Hz | |||||
Gray Scale | 13bits～24bits | |||||
Viewing Angle | H:160° / V:160° | |||||
Maximum Power Consumption | 800W/㎡ | |||||
Average Power Consumption | 230W/㎡ | |||||
Input Voltage | AC110V～AC220V @ 50Hz / 60Hz | |||||
Operating Temperature | ﹣20℃～65℃ | |||||
Operating Humidity | 10%～90% | |||||
Cabinet Material | Die-casting Aluminum | |||||
Cabinet Weight | 7.5kg/panel | |||||
Operating System | Windows (Win7, Win8, etc.) | |||||
Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | |||||
