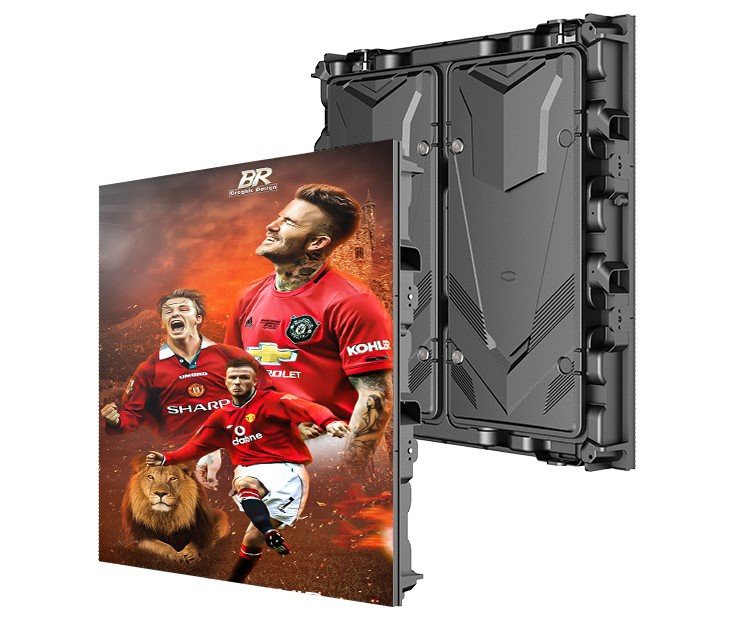

Sport LED Sign
Commercial motion display, seamless stitching, clear and smooth dynamic picture, support front/back maintenance, ultra-wide viewing Angle, comfortable viewing experience
Product Introduction
STANDARDIZED BOX

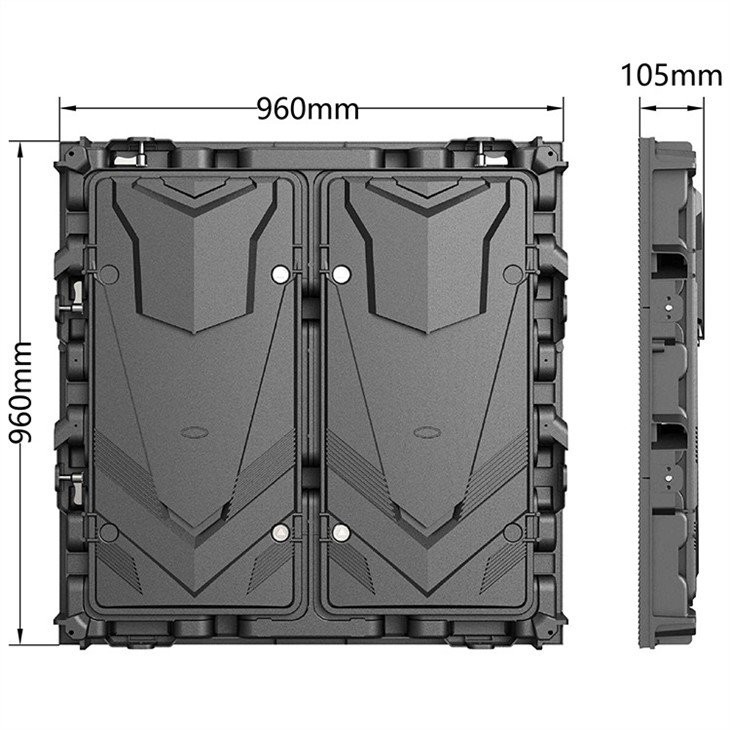

Box body adopts die casting magnesium aluminum structure design, 960x960 gold specification, the thickness of the whole machine is only 105mm, high precision, light weight
 | Complete connection structure + left and right handles, installation site handling more convenient, more safe |
More comprehensive maintenance mode: All components support front and rear maintenance |  |
 | More diverse choices, according to the needs of the scene, can choose sealed design box or strong heat dissipation box |
Die-cast magnesium aluminum alloy box, the protection grade reaches IP67 grade, do not fear the wind and rain in the harsh outdoor environment |  |
 | Optional football field bracket, screen ground support is stable, according to the viewing Angle mind free adjustment screen display Angle |
Support loop communication backup, encounter channel transmission problems, can still ensure the normal work of the screen |  |
6000nits brightness, 7000:1 high contrast, 3840Hz high refresh rate, higher picture quality, more perfect details
Support 8K range ultra clear display
Super wide range of display Angle, up and down 160° range of barrier-free viewing, to ensure that every audience can receive a perfect viewing experience
INSTALLATIONENVIRONMENT
Stadiums, football stadiums, live events, brand promotion, etc
Item | P6.67 | P8 | P10 |
Pixel Pitch | 6.667mm | 8mm | 10mm |
LED Type | SMD2727 | SMD2727 | SMD2727 |
Module Resolution | 48dots × 48dots | 40dots × 40dots | 32dots × 32dots |
Driving Mode | 1/6scan | 1/5scan | 1/2scan |
Module Pixels | 2,304dots | 1,600dots | 1,024dots |
Module Size | 320 × 320mm | 320 × 320mm | 320 × 320mm |
Cabinet Size | 960 × 960 × 110mm | 960 × 960 × 110mm | 960 × 960 × 110mm |
Cabinet Resolution | 144 × 144dots | 120 × 120dots | 96s× 96dots |
Pixel Density | 22,500 dots/㎡ | 15,625dots/㎡ | 10,000dots/㎡ |
Minimum Viewing Distance | ≥6m | ≥8m | ≥10m |
Brightness | 5,500nits～6,500nits | 5,000nits～5,500nits | 5,500nits～6,500nits |
IP Grade | IP67 | IP67 | IP67 |
Refresh Rate | 1,920Hz～3,840Hz | 1,920Hz～3,840Hz | 1,920Hz～3,840Hz |
Gray Scale | 13bits～24bits | 13bits～24bits | 13bits～24bits |
Viewing Angle | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° |
Maximum Power Consumption | 800W/㎡ | ||
Average Power Consumption | 280W/㎡ | ||
Input Voltage | AC220V ～ AC110V @ 50Hz / 60Hz | ||
Operating Temperature | ﹣20℃～65℃ | ||
Operating Humidity | 10%～90% | ||
Cabinet Material | Aluminum profile | ||
Cabinet Weight | 30kg/panel | ||
Operating System | Windows (Win7, Win8, etc.) | ||
Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | ||
* Parameters may change according to different configurations. The final interpretation right belongs to Leder Company. Welcome to inquire.
