Stadium LED Sign
● Dimension & weight The weight of cabinet only 30kg/panel, made by aluminum materials, better material to against harsh environment. The size of outdoor led screen is 960mm×960mm standard size, and can be used as indoor fixed installation LED Display, outdoor led signs, rental LED display,...
Product Introduction
STANDARDIZED BOX
Aluminum alloy box body, one body forming, high precision, light weight
 | Perfect box design, a variety of key accessories complete,whethertransportation or installation haveenoughconvenience |

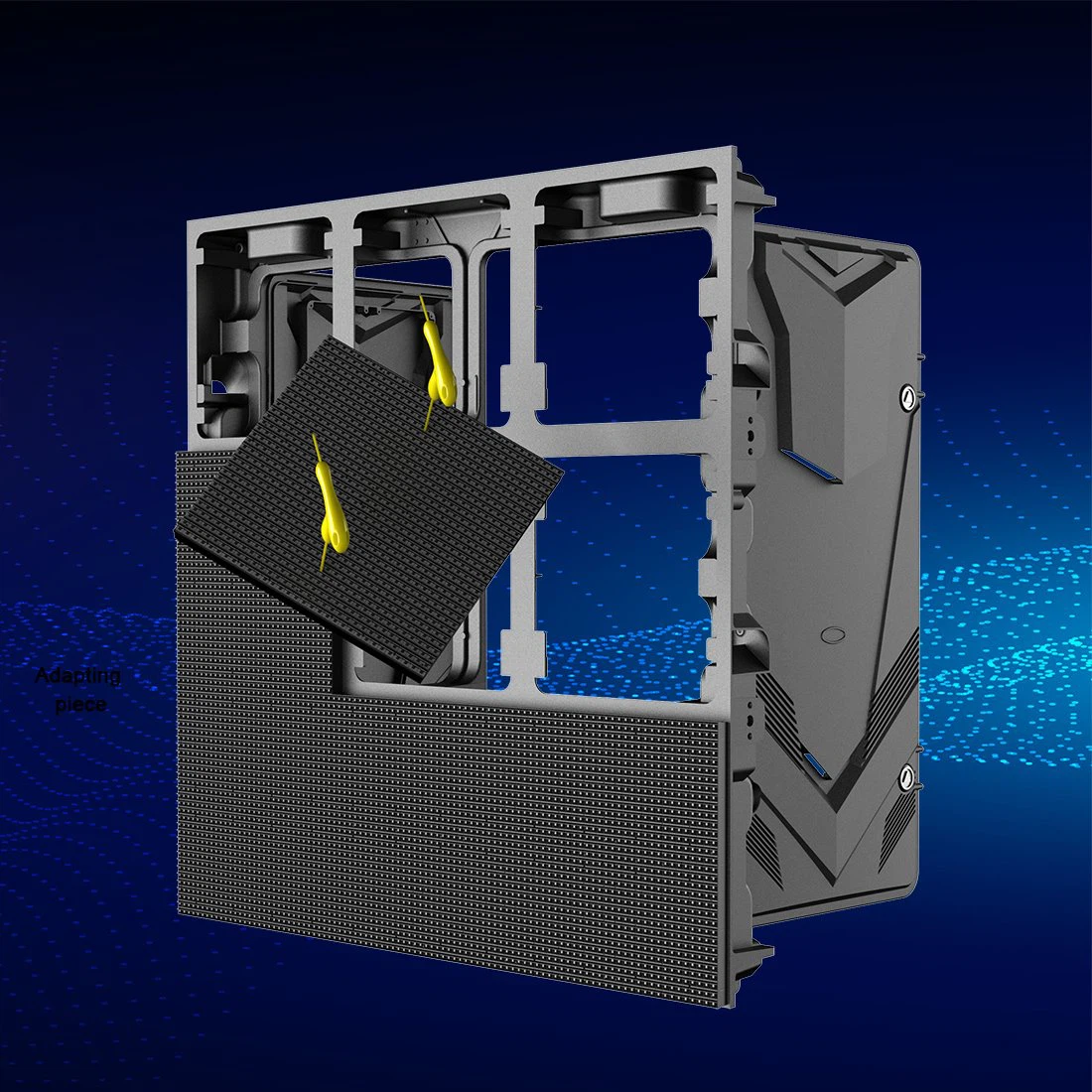

Two maintenance modes are supported, reducing environmental restrictions and facilitating maintenance |  |
 | Two designs, a variety of uses, to meet the differen t needs of different customers |
IP67 grade high quality protection, stable prevent outdoor scene of various rain, sand, salt erosion |  |

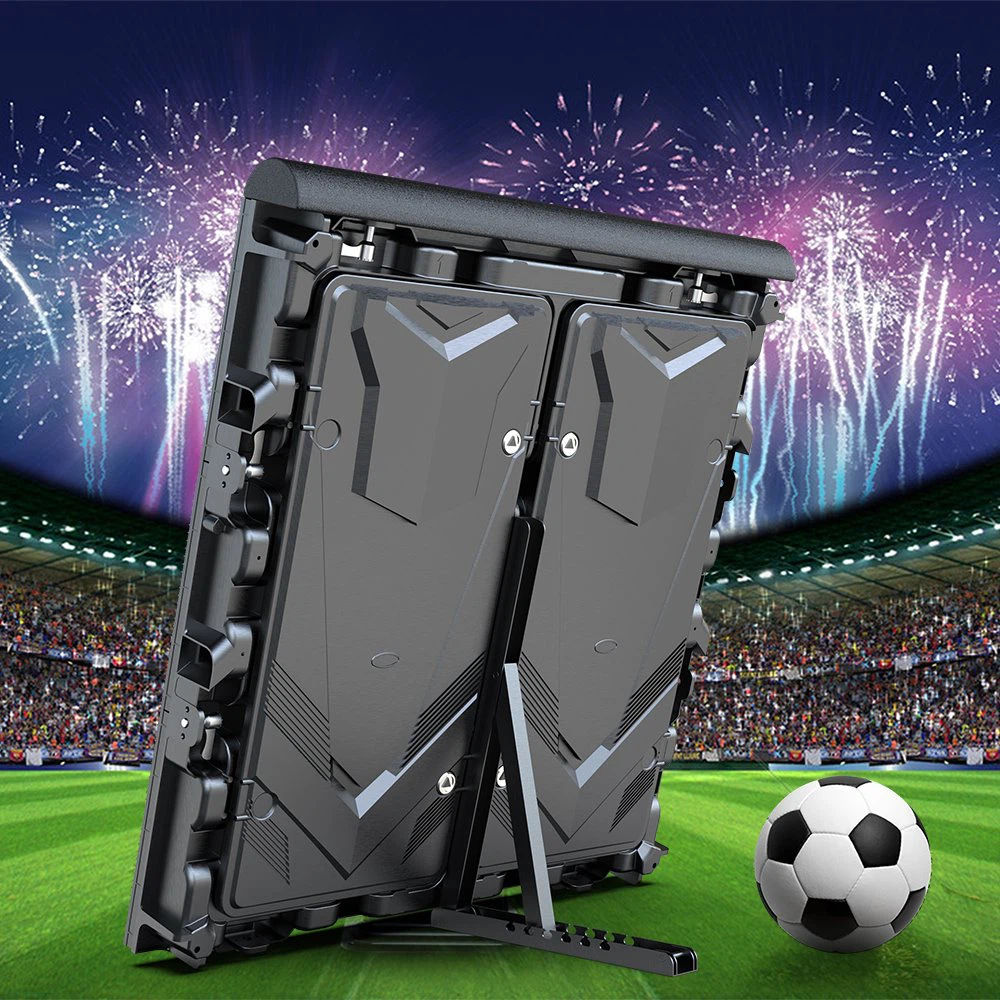

 | Special accessories for the course, impact resistance, canfreely adjust the display Angle of the box |
Double backup system, even if the electrical signal transmission inthe process of failure can still ensure thenormalplayback display |  |
Support to high 8K ultra hd resolution, more delicate picture quality, higher picture clarity
Ultra wide viewing Angle, H:160° / V:160° barrier-free viewing
INSTALLATIONENVIRONMENT
Diversified scene support capabilities, including various sports fields, advertising signs, transportation hub signs, regional landmarks, etc., thousands of screens can be created freely
Item | P6.67 | P8 | P10 |
Pixel Pitch | 6.667mm | 8mm | 10mm |
LED Type | SMD2727 | SMD2727 | SMD2727 |
Module Resolution | 48dots × 48dots | 40dots × 40dots | 32dots × 32dots |
Driving Mode | 1/6scan | 1/5scan | 1/2scan |
Module Pixels | 2,304dots | 1,600dots | 1,024dots |
Module Size | 320 × 320mm | 320 × 320mm | 320 × 320mm |
Cabinet Size | 960 × 960 × 110mm | 960 × 960 × 110mm | 960 × 960 × 110mm |
Cabinet Resolution | 144 × 144dots | 120 × 120dots | 96s× 96dots |
Pixel Density | 22,500 dots/㎡ | 15,625dots/㎡ | 10,000dots/㎡ |
Minimum Viewing Distance | ≥6m | ≥8m | ≥10m |
Brightness | 5,500nits～6,500nits | 5,000nits～5,500nits | 5,500nits～6,500nits |
IP Grade | IP67 | IP67 | IP67 |
Refresh Rate | 1,920Hz～3,840Hz | 1,920Hz～3,840Hz | 1,920Hz～3,840Hz |
Gray Scale | 13bits～24bits | 13bits～24bits | 13bits～24bits |
Viewing Angle | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° |
Maximum Power Consumption | 800W/㎡ | ||
Average Power Consumption | 280W/㎡ | ||
Input Voltage | AC220V ～ AC110V @ 50Hz / 60Hz | ||
Operating Temperature | ﹣20℃～65℃ | ||
Operating Humidity | 10%～90% | ||
Cabinet Material | Aluminum profile | ||
Cabinet Weight | 30kg/panel | ||
Operating System | Windows (Win7, Win8, etc.) | ||
Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | ||
* Parameters may change according to different configurations. The final interpretation right belongs to Leder Company. Welcome to inquire.
