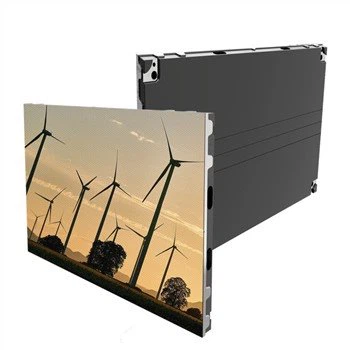

1080p Full Color Indoor Led Board
LP2 series fine pixel pitch led display uses ultra slim panel, the high precise die-casting panel is with 16:9 aspect ratio.The led panel supports fully front service for easier installation and maintenance. It is perfect to make 1080p, 2K/4K/8K full color indoor led board. It has P0.9mm, P1.25mm, P1.56mm, P1.875mm and P2.5mm pixel pitch options.
Product Introduction
Products Description
1080p full color indoor Led board can be used to play different types of multimedia files because it supports various formats of video, image, audio, and even document files. It is also suitable for a variety of different connection methods, including HDMI, VGA and DVI, etc., and supports a variety of signal inputs. Thanks to its full color high resolution of 1080p, this LED display provides excellent image quality, which means your advertising and marketing messages will be clearer, sharper and more visually appealing to potential customers. It uses high-brightness LED chips, which can clearly display content in an unsuitable environment, and it allows brightness adjustment according to the ambient brightness requirements to achieve better visual effects. According to the specific requirements of customers, we can provide P0.9mm, P1.25mm, P1.56mm, P1.875mm and P2.5mm pixel pitch options. Welcome customers in need to come to discuss cooperation!
Features
1. High definition: The standard resolution of this display is 1080p, which ensures high definition and clear image display. At the same time, it can also provide 2K/4K/8K for selection.
2. Strong and durable: The panel of this display is made of die-cast aluminum material, which can withstand harsh conditions, such as 50℃ extreme temperature and 90% high humidity.
3. Low power consumption: This display adopts high-efficiency LED technology and energy-saving measures, which can work at lower power to save energy.
4. Easy maintenance: The panel of this 1080p full color indoor Led board adopts magnetic adsorption design and hidden wiring, so it allows complete front maintenance, and there are few system failures.
5. Wide range of applications: This display can be used in commercial places for advertising, such as shopping centers, supermarkets, cinemas, etc. It can also be used in publicity exhibitions, art exhibitions, museums, conference rooms, lecture halls and other large venues.
More convenient maintenance methods
The module is adsorbent by magnet, and the installation and maintenance process is simple
Connect directly through the HUB board port, safer and faster
Simple internal structure
Product internal wire use less, the internal environment is simple, product use stability is better
High flatness
With high precision connecting pieces, the product can be installed seamlessly
Product Display
Our factory
FAQ
Under what circumstances do we use network cables? Under what circumstances do you use optical fiber?
When the distance between the display and the control computer is less than 100m, it is transmitted with the network cable; when the distance between the two is less than 500m greater than 100m, use multi -mode fiber and when the distance is greater than 500m or more, use single -mode fiber;
What is LAN control? What is Internet control?
Controls another computer or connected to it through one computer inside the local area network. This control method is called the LAN control; Calling the Internet control;
| PARAMETER | |||||
| Item | P0.9 | P1.25 | P1.56 | P1.875 | P2.5 |
| Pixel Pitch | 0.9375mm | 1.25mm | 1.5625mm | 1.875mm | 2.5mm |
| LED Type | MINI LED | SMD1010 | SMD1212 | SMD1515 | SMD2020 |
| Module Resolution | 320 × 180dots | 240 × 135dots | 192 × 108dots | 160 × 90dots | 120 × 68dots |
| Driving Mode | 1/60scan | 1/45scan | 1/36scan | 1/45scan | 1/32scan |
| Module Pixels | 57,600dots | 32,400dots | 20,736dots | 14,400dots | 8160dots |
| Module Size | 300 × 168.75mm | 300 × 168.75mm | 300 × 168.75mm | 300 × 168.75mm | 300 × 168.75mm |
| Cabinet Size | 600mm × 337.5mm × 30mm | ||||
| Cabinet Resolution | 640 × 360dots | 480 × 270dots | 384 × 216dots | 320 × 180dots | 240 × 135dots |
| Pixel Density | 1,137,777dots/㎡ | 640,000dots/㎡ | 409,600dots/㎡ | 284,444dots/㎡ | 160,000dots/㎡ |
| Best Viewing Distance | ≥0.9 m | ≥1.2 m | ≥1.5 m | ≥1.8 m | ≥2.5 m |
| Brightness | 350nits | 400nits | 500nits | 800nits | |
| IP Grade | IP43 | ||||
| Refresh Rate | 1,920Hz～3,840Hz(depends on IC driver solution) | ||||
| Gray Scale | 14bits～22bits(depends on IC driver and controller solution ) | ||||
| Viewing Angle | H:150° / V:150° | H:110° / V:110° | |||
| Maximum Power Consumption | 400W/㎡ | 320W/㎡ | 400W/㎡ | 350W/㎡ | |
| Average Power Consumption | 130W/㎡ | 105W/㎡ | 130W/㎡ | 110W/㎡ | |
| Input Voltage | AC110V～AC220V @ 50Hz / 60Hz | ||||
| Operating Temperature | ﹣20℃～50℃ | ||||
| Operating Humidity | 10%～90% | ||||
| Cabinet Material | Die-casting Aluminum | ||||
| Cabinet Weight | 3.8kg/panel | ||||
| Operating System | Windows (Win7, Win10, etc.) | ||||
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | ||||
