Big Notice Full Color Led Board
LUM serties is designed for outdoor fixed applications, especially where are required a solution of lightweight, slim, easy to maintain, and energy-saving. It is the perfect choice for an outdoor 3D glass-free led display as it is allowed to assemble into a giant led screen with less weight. And it is only 110mm in thickness and compatible with front and rear service, which gives big flexibility for maintenance for outdoor 3D naked-eye big notice full color led board. Furthermore, its great heat dissipation and lower power consumption contribute a lot to energy saving for green city campaigns around the world.
Product Introduction
Products Description
LUM serties is designed for outdoor fixed applications, especially where are required a solution of lightweight, slim, easy to maintain, and energy-saving. It is the perfect choice for an outdoor 3D glass-free led display as it is allowed to assemble into a giant led screen with less weight. And it is only 110mm in thickness and compatible with front and rear service, which gives big flexibility for maintenance for outdoor 3D naked-eye big notice full color led board.
Standby power port
The module is equipped with two power ports, one as a common port, one as a standby port, the product life is longer.
Multiple structured modules
Aluminum alloy backplane design, strong heat dissipation performance, high quality insulation adhesive, good sealing
Convenient maintenance mode
Support front and rear maintenance, central control box can be disassembled
More secure connections
The interface is directly linked, and the installation process is efficient
Led hd display screen for advertising outdoor.This product excellent performance, advanced structure, comprehensive cost-effective, can perfectly adapt to a variety of miscellaneous application scenarios, suitable for all kinds of outdoor scenes, advertising signs, roads, stations, shopping malls, landmarks and so on.
Product Picture
Outdoor use scenario
advertising signs
Road public display

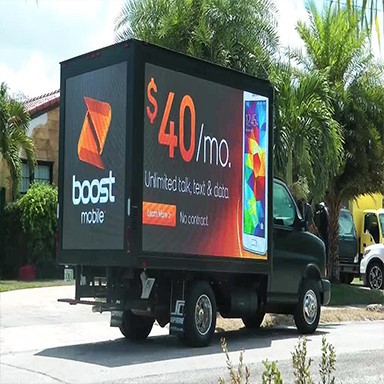

Car screen
Ground screen
FAQ
LED color temperature basic knowledge
The more blue the light color, the higher the color temperature; the more red the light color, the lower the color temperature. The color of the light source is different, and the light color is different. There is a stable atmosphere and warm feeling below 3300K; the color temperature is 3000--5000K is the middle color temperature, which has a refreshing feeling; the color temperature is more than 5000K. Different light colors of different light sources form the best environment.
The preferences in color temperature vary from person to person, which is related to the scenery of the scenery we see. For example, in areas close to the equator, the average color temperature that people see daily are 11000K (8000K (dusk) ~ 17000K (noon)), so they prefer high -color temperature (look real). On the contrary, people with high latitude (average color temperature of about 6000K) prefer low -color temperature (5600K or 6500K), which means that if you use a high -color temperature TV to express the Arctic landscape, it looks like you will feel it. Blue; on the contrary, if you watch the subtropical style with a low -color temperature, you will feel a bit red.
How is the color temperature of the TV or the display defined? Because the average color temperature of the Chinese scenery is between 8000K and 9500K all year round, the production of TV programs is based on the color temperature of the audience as 9300K. However, we usually have differences in the color temperature of Europe and the United States. It is based on the average color temperature of about 6000K all year round. Therefore, when we watch those foreign films, we will find that 5600K ~ 6500K is most suitable for watching.
| PARAMETER | |||||
| Item | P3.91 | P4.81 | P6.25 | P7.8 | P10.4 |
| Pixel Pitch | 3.906mm | 4.807mm | 6.25mm | 7.8125mm | 10.417mm |
| LED Type | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Module Resolution | 128dots × 64dots | 104dots × 52dots | 80dots × 40dots | 64dots × 32dots | 48dots x 24dots |
| Driving Mode | 1/16scan or 1/8scan | 1/13scan or 1/7scan | 1/5scan | 1/4scan | 1/2scan |
| Module Pixels | 8,192dots | 5,408dots | 3,200dots | 2,048dots | 1,152dots |
| Module Size | 500mm × 250mm | ||||
| Cabinet Size | 1000mm × 1000mm or 1000mm × 500mm | ||||
| Cabinet Resolution (1000mm × 1000mm) | 256dots × 256dots | 208dots × 208dots | 160dots × 160dots | 128dots × 128dots | 96dots × 96dots |
| Pixel Density | 65,536dots/㎡ | 43,264dots/㎡ | 25,600dots/㎡ | 16,384dots/㎡ | 9,216dots/㎡ |
| Best Viewing Distance | ≥3.9 m | ≥4.8 m | ≥6.2 m | ≥7.8 m | ≥10 m |
| Brightness | 4500nits or 6000nits | 6500nits or 9000nits | 6500nits or 9500nits | 6500nits or 10000nits | |
| IP Grade | IP65 | ||||
| Refresh Rate | 1,920Hz～3,840Hz(depends on IC driver solution) | ||||
| Gray Scale | 14bits～22bits(depends on IC driver and controller solution ) | ||||
| Viewing Angle | H:110° / V:110° | ||||
| Maximum Power Consumption | 800W/㎡ | 800W/㎡ | 720W/㎡ | 650W/㎡ | |
| Average Power Consumption | 265W/㎡ | 265W/㎡ | 240W/㎡ | 220W/㎡ | |
| Input Voltage | AC110V～AC220V @ 50Hz / 60Hz | ||||
| Operating Temperature | ﹣20℃～50℃ | ||||
| Operating Humidity | 10%～90% | ||||
| Cabinet Material | Aluminum profile | ||||
| Cabinet Weight | 30kg/m2 | ||||
| Operating System | Windows (Win7, Win10, etc.) | ||||
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | ||||
