Outdoor Led Digital Monitor
The outdoor led digital monitor of LUM series can monitor the working status of the display at any time and remotely control the basic display functions, The light sensor can automatically adjust the brightness according to the working environment(system and IC support is required)
Product Introduction
Products Description

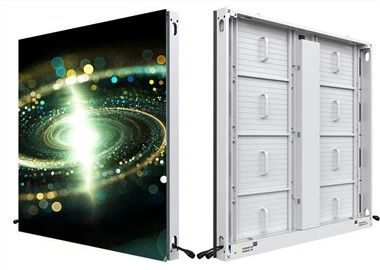

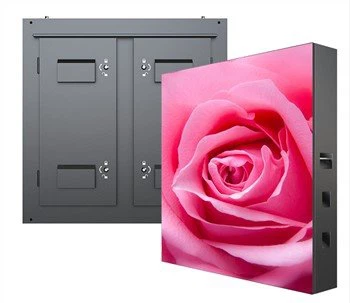

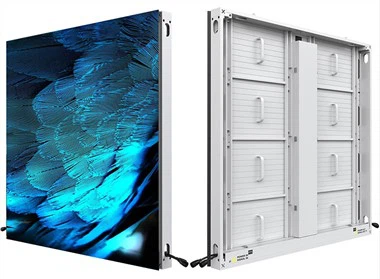

LUM outdoor series display screen,high-grade aluminum alloy frame,high precision, concise modeling, mature industrial deign structure, easy to transport,installation safety, stability, durability, front and back maintenance.
Standby power port
The module is equipped with two power ports, one as a common port, one as a standby port, the product life is longer.
Multiple structured modules
Aluminum alloy backplane design, strong heat dissipation performance, high quality insulation adhesive, good sealing
Convenient maintenance mode
Support front and rear maintenance, central control box can be disassembled
More secure connections
The interface is directly linked, and the installation process is efficient
Outdoor use scenario
advertising signs
Road public display
Car screen
Ground screen
FAQ.
1. It has good water resistance: the ordinary outdoor LED display shell is made of high-quality aluminum alloy, which has been carefully modified, fully considering the structure and mechanical strength of the screen body, and has good water resistance, which can prevent rainwater from penetrating into the screen body and protect the screen body circuit and internal components.
2. High wind resistance: the bracket structure design of outdoor LED display can better prevent the influence of high winds and ensure no noise in low temperature environments, so as to effectively reduce the damage caused by wind of outdoor screens.
3. Excellent visibility: The LED external screen adopts a high-brightness, high-resolution LED chip, which can meet the needs of the human eye for high-definition images, and the contrast is high and the brightness is bright, which can provide excellent visual effects, and can still be viewed even in the case of strong light during the day.
4. Have a longer service life: LED outdoor display can withstand harsh weather environment and high temperature and low temperature changes, so its service life is longer than that of general indoor display screen, and can be used in a variety of outdoor environments for up to ten years.
Advantages of China's LED display products
First, the cost advantage1. Due to the low investment, low cost and wide range of use of LED display, it can reduce costs without affecting quality;2. Excellent technical performance, can achieve high resolution, excellent display effect3. Long life, can provide continuous years of normal use4. Low energy consumption, fully meet environmental protection requirements5. Good portability, can be moved flexiblySecond, color vivid, high brightness1. LED display has extremely high brightness and vivid colors, making the visual effect more rich and vivid.2. LED display has extremely high brightness is an order of magnitude higher than CRT display, which significantly improves the visual effect.3. The display can reach a viewing angle of 180°, and you can see a clear picture in more fields.4. Whether indoors or outdoors, the projection angle can be adjusted by yourself, making the picture display clearer.
| PARAMETER | |||||
| Item | P3.91 | P4.81 | P6.25 | P7.8 | P10.4 |
| Pixel Pitch | 3.906mm | 4.807mm | 6.25mm | 7.8125mm | 10.417mm |
| LED Type | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Module Resolution | 128dots × 64dots | 104dots × 52dots | 80dots × 40dots | 64dots × 32dots | 48dots x 24dots |
| Driving Mode | 1/16scan or 1/8scan | 1/13scan or 1/7scan | 1/5scan | 1/4scan | 1/2scan |
| Module Pixels | 8,192dots | 5,408dots | 3,200dots | 2,048dots | 1,152dots |
| Module Size | 500mm × 250mm | ||||
| Cabinet Size | 1000mm × 1000mm or 1000mm × 500mm | ||||
| Cabinet Resolution (1000mm × 1000mm) | 256dots × 256dots | 208dots × 208dots | 160dots × 160dots | 128dots × 128dots | 96dots × 96dots |
| Pixel Density | 65,536dots/㎡ | 43,264dots/㎡ | 25,600dots/㎡ | 16,384dots/㎡ | 9,216dots/㎡ |
| Best Viewing Distance | ≥3.9 m | ≥4.8 m | ≥6.2 m | ≥7.8 m | ≥10 m |
| Brightness | 4500nits or 6000nits | 6500nits or 9000nits | 6500nits or 9500nits | 6500nits or 10000nits | |
| IP Grade | IP65 | ||||
| Refresh Rate | 1,920Hz～3,840Hz(depends on IC driver solution) | ||||
| Gray Scale | 14bits～22bits(depends on IC driver and controller solution ) | ||||
| Viewing Angle | H:110° / V:110° | ||||
| Maximum Power Consumption | 800W/㎡ | 800W/㎡ | 720W/㎡ | 650W/㎡ | |
| Average Power Consumption | 265W/㎡ | 265W/㎡ | 240W/㎡ | 220W/㎡ | |
| Input Voltage | AC110V～AC220V @ 50Hz / 60Hz | ||||
| Operating Temperature | ﹣20℃～50℃ | ||||
| Operating Humidity | 10%～90% | ||||
| Cabinet Material | Aluminum profile | ||||
| Cabinet Weight | 30kg/m2 | ||||
| Operating System | Windows (Win7, Win10, etc.) | ||||
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | ||||
