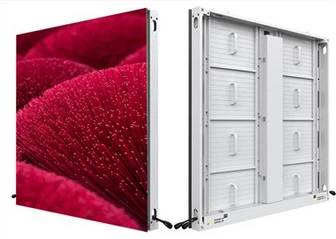

Outdoor Sport Game Video Led Board
LFA outdoor display, the most pupular outdoor led hd sign panels in US market, small-size and lightweight modular cabinet. Integrated with power supply, receiving card. IP degrees reaches IP67 protection, which is suitable for various working environments: dusty roadside, wet seashore etc., it is ideal outdoor product. High pixel support 4.7mm, 6.3mm, P9.5 provide far more than the traditional higher pixel fine picture. Many customers cases is about outdoor p10 led video screen, which is the first choice for customers. Besides, High brightness, high refresh rate, low failure rate, high efficiency and energy saving, good display effect, stable operation in all weather outdoor applications. You can see the LFA series led display in many outdoor places, such as the outdoor led digital led sign, outdoor advertising display and outdoor scrolling led sign for business so on. Quick removable from front or back, easy for maintenance. Smart color even the full color accuracy assessment, controller system allows you to creat plans and organize content from anywhere on any device(system support required).
Product Introduction
Products Description
Easier maintenance
It has two maintenance methods: front and back, which can be removed from the front or back
Independent modular design, easy installation, easy to build outdoor large screen
Stable temperature control system
Equipped with a large area of metal cooling back, heat conduction speed, temperature control performance is excellent
Angle cutting design
The edge of 45° cutting Angle, easy to construct a variety of Angle screen body
Installation
Depending on its excellent structural design and rich installation and connection parts, the product can be freely combined to build a variety of display screens, strong environmental compatibility, conducive to taking into account a wider range of customers.
FAQ
What is SMT? What is SMD?
SMT is the surface assembly technology (abbreviation of Surface Mountain Technology), which is the most popular technology and process in the current electronic assembly industry; SMD is a surface assembly device (abbreviation of the Surface Mounted Device);
What is the LED display module?
Basic units that are determined by the circuit and installation structure, have display functions, and can implement the display function through simple assembly;
| PARAMETER | |||
| Item | P4.76 | P6.35 | P9.52 |
| Pixel Pitch | 4.7625mm | 6.35mm | 9.525mm |
| LED Type | SMD1921 | SMD2727 | SMD2727 |
| Module Resolution | 128dots x 64dots | 96dots x 48dots | 64dots x 32dots |
| Driving Mode | 1/8scan | 1/6scan | 1/2scan |
| Module Pixels | 8192dots | 4608dots | 2048dots |
| Module Size | 2ft x 1ft | ||
| Cabinet Size | 2ft x 1ft | ||
| Cabinet Resolution | 128dots x 64dots | 96dots x 48dots | 64dots x 32dots |
| Pixel Density | 44,088dots/m² | 24,800dots/m² | 11,022dots/m² |
| Best Viewing Distance | ≥4.7 m | ≥6.3 m | ≥9.5 m |
| Brightness | 6,500nits | 6,500nits / 8,000nits | 6,500nits / 10,000nits |
| IP Grade | IP67 | ||
| Refresh Rate | 1,920Hz～3,840Hz (depends on IC driver solution) | ||
| Gray Scale | 14bits～22bits (depends on IC driver and controller solution ) | ||
| Viewing Angle | H:110° / V:110° | ||
| Maximum Power Consumption | 800W/m² | 550W/m² | |
| Average Power Consumption | 260W/m² | 180W/m² | |
| Input Voltage | AC110V - AC220V @ 50Hz/60Hz | ||
| Operating Temperature | ﹣20℃～50℃ | ||
| Operating Humidity | 10%～90% | ||
| Cabinet Material | die-casting Aluminum | ||
| Cabinet Weight | 3.9kg | 3.8kg | |
| Operating System | Windows (Win7, Win10 etc.) | ||
| Signal Source Compatibility | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | ||
