Mobile Led Screen Rental
The led display screen can be used in many fields and occasions.
Product Introduction

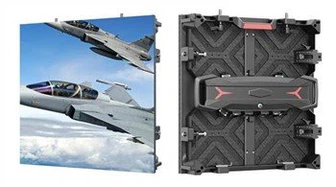

◆Dimension & Weight
High accuracy, good intensity, good flatness with die-casting aluminum cabinet.
Lightweight which very convenient to take for different kinds of show usage.
The weight only 7.5kg, and the thickness only 85mm, reduces the transportation cost, the labor intensity of the staff and the bearing capacity of the steel structure.
LED billboard advertising features：
●Tool-less &easy to assemble and disassemble
●Different kinds of pixel pitch option with indoor and outdoor
●Front and rear maintenance available
●Adopting the die-cast aluminum cabinet design with light-weight and saving much labor cost.
●Support convex and concave curability
●Versatile led panel board with multiple creative applications
◆Maintenance ( both back and rear maintenance)
Support full front & rear maintenance, realize fast disassembling in different occasions, better installation experience.
The display gets ≥160° in the left and right directions, and the viewing angle ≥120° degrees in the upper and lower directions. Even if the screen faces direct light, there is no reflective image.
◆Installation
The led display screen can be used in many fields and occasions.
For example: events, sports, trade show, entertainment, concert, house of worship, wedding,exhibition, etc.
| LRO-500X500 Indoor | |||||
| Item | P1.9 | P2.6 | P2.9 | P3.9 | P4.8 |
| Pixel Pitch | 1.953mm | 2.604mm | 2.976mm | 3.906mm | 4.807mm |
| LED Type | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Module Resolution | 128dots × 128dots | 96dots × 96dots | 84dots × 84dots | 64dots × 64dots | 52dots × 52dots |
| Driving Mode | 1/32 | 1/16 or 1/32 | 1/28 | 1/16 | 1/13 |
| Module Pixels | 16,384dots | 9,216dots | 7,056dots | 4,096dots | 2,704dots |
| Module Size | 250mm × 250mm | ||||
| Cabinet Size | 500mm × 500mm or 500mm × 1000mm | ||||
| Cabinet Resolution( 500mm × 500mm) | 256dots × 256dots | 192dots × 192dots | 168dots × 168dots | 128dots × 128dots | 104dots × 104dots |
| Pixel Density | 262,144dots/㎡ | 147,456dots/㎡ | 112,896dots/㎡ | 65,536dots/㎡ | 43,264dots/㎡ |
| Best Viewing Distance | ≥1.9m | ≥2.6m | ≥2.9 m | ≥3.9 m | ≥4.8 m |
| Brightness | 800nits | ||||
| IP Grade | IP43 | ||||
| Refresh Rate | 1,920Hz～3,840Hz(depends on IC driver solution) | ||||
| Gray Scale | 14bits～22bits(depends on IC driver and controller solution ) | ||||
| Viewing Angle | H:110° / V:110° | ||||
| Maximum Power Consumption | 600W/㎡ | 750W/㎡ or 600W/㎡ | 500W/㎡ | 500W/㎡ | 500W/㎡ |
| Average Power Consumption | 200W/㎡ | 250W/㎡ or 200W/㎡ | 160W/㎡ | ||
| Input Voltage | AC110V～AC220V @ 50Hz / 60Hz | ||||
| Operating Temperature | ﹣20℃～50℃ | ||||
| Operating Humidity | 10%～90% | ||||
| Cabinet Material | Die-casting Aluminum | ||||
| Cabinet Weight (500mm × 500mm) | 7.5kg/panel | ||||
| Operating System | Windows (Win7, Win10, etc.) | ||||
| LRI-500x500 Outdoor | ||||
| Item | P2.9 | P3.9 | P4.8 | P5.9 |
| Pixel Pitch | 2.976mm | 3.906mm | 4.807mm | 5.952mm |
| LED Type | SMD1415 | SMD1921 | SMD1921 | SMD2727 |
| Module Resolution | 84dots × 84dots | 64dots × 64dots | 52dots × 52dots | 42dots × 42dots |
| Driving Mode | 1/ 21scan | 1/8scan or 1/16scan | 1/13scan | 1/7scan |
| Module Pixels | 7,056dots | 4,096dots | 2,704dots | 1,764dots |
| Module Size | 250mm × 250mm | |||
| Cabinet Size | 500mm × 500mm or 500mm × 1000mm | |||
| Cabinet Resolution 500mm × 500mm | 168dots × 168dots | 128dots × 128dots | 104dots × 104dots | 84dots × 84dots |
| Pixel Density | 112,896dots/㎡ | 65,536dots/㎡ | 43,264dots/㎡ | 28,224dots/㎡ |
| Best Viewing Distance | ≥2.9 m | ≥3.9 m | ≥4.8 m | ≥5.9m |
| Brightness | 5,500nits | 5000nits or 6000nits | 4,500nits | 5500nits |
| IP Grade | IP65 | |||
| Refresh Rate | 1,920Hz～3,840Hz(depends on IC driver solution) | |||
| Gray Scale | 14bits～22bits(depends on IC driver and controller solution ) | |||
| Viewing Angle | H:110° / V:110° | |||
| Maximum Power Consumption | 1000W/㎡ | 1000W/㎡ or 800W/㎡ | 900W/㎡ | 850W/㎡ |
| Average Power Consumption | 330W/㎡ | 330W/㎡ or 260W/㎡ | 300W/㎡ | 280W/㎡ |
| Input Voltage | AC110V～AC220V @ 50Hz / 60Hz | |||
| Operating Temperature | ﹣20℃～50℃ | |||
| Operating Humidity | 10%～90% | |||
| Cabinet Material | Die-casting Aluminum | |||
| Cabinet Weight (500mm × 500mm) | 7.5kg/panel | |||
| Operating System | Windows (Win7, Win10, etc.) | |||
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | |||
