Mobile Advertising Business Led Board
Leder 500x500 rental mobile advertising business led board , with integrated die-casting Aluminum material and smart design which including Anti-Collision and seamless connection , light weight , easy to move and install and curved available to make sure different creative solutions.
Product Introduction
Products Description
Leder 500x500 rental mobile advertising business led board , with integrated die-casting Aluminum material and smart design which including Anti-Collision and seamless connection , light weight , easy to move and install and curved available to make sure different creative solutions.
Support and single-person quick maintenance, the box body up and down, left and right locks can be quickly disassembled and assembled.

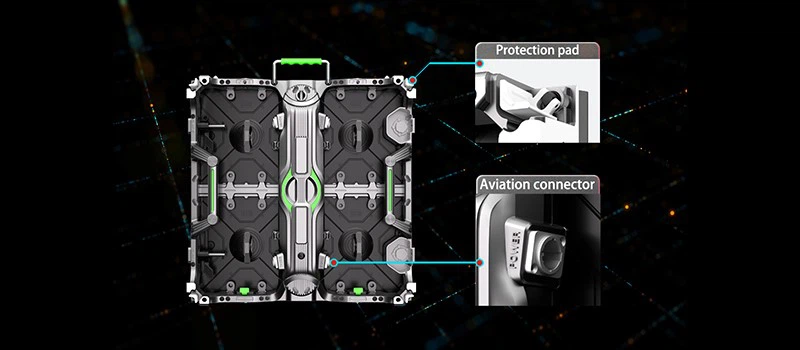

There are lamp guard flips at the four corners of cabinet to protect modules corners and led lamps during transit.

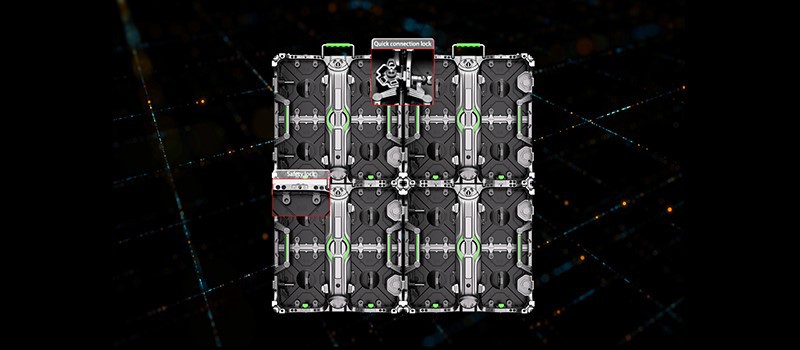

Perfect quick-lock connection structure, diversified cabinet splicing styles, infinite possibilities for creative screen design.

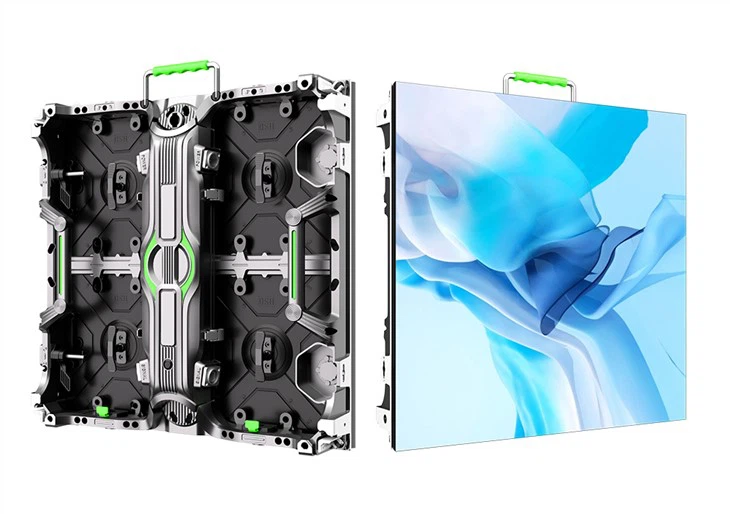

Product Picture

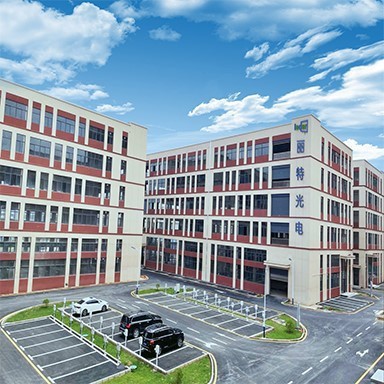

Our factory
Item | P1.9 | P2.6 | P2.9 | P3.9 | P4.8 | P5.9 |
Pixel Pitch | 1.953mm | 2.604mm | 2.976mm | 3.906mm | 4.807mm | 5.952mm |
LED Type | SMD1212 | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD2727 |
Module Resolution | 128dots × 128dots | 96dots × 96dots | 84dots × 84dots | 64dots × 64dots | 52dots × 52dots | 42dots × 42dots |
Driving Mode | 1/32scan | 1/16scan or 1/32scan | 1/14scan or 1/ 21scan | 1/16scan or 1/8scan | 1/13scan or 1/7scan | 1/7scan |
Module Pixels | 16,384dots | 9,216dots | 7,056dots | 4,096dots | 2,704dots | 1,764dots |
Module Size | 250mm × 250mm | 250mm × 250mm | 250mm × 250mm | 250mm × 250mm | 250mm × 250mm | 250mm × 250mm |
Cabinet Size | 500mm × 500mm | 500mm × 500mm | 500mm × 500mm | 500mm × 500mm | 500mm × 500mm | 500mm × 500mm |
Cabinet Resolution | 256dots × 256dots | 192dots × 192dots | 168dots × 168dots | 128dots × 128dots | 104dots × 104dots | 84dots × 84dots |
Pixel Density | 262,144dots/㎡ | 147,456dots/㎡ | 112,896dots/㎡ | 65,536dots/㎡ | 43,264dots/㎡ | 28,224dots/㎡ |
Minimum Viewing Distance | ≥1.9m | ≥2.6m | ≥2.9 m | ≥3.9 m | ≥4.8 m | ≥5.9m |
Brightness | 4,000nits | |||||
IP Grade | IP65 | |||||
Refresh Rate | 1,920Hz～3,840Hz | |||||
Gray Scale | 13bits～24bits | |||||
Viewing Angle | H:160° / V:160° | |||||
Maximum Power Consumption | 800W/㎡ | |||||
Average Power Consumption | 230W/㎡ | |||||
Input Voltage | AC110V～AC220V @ 50Hz / 60Hz | |||||
Operating Temperature | ﹣20℃～65℃ | |||||
Operating Humidity | 10%～90% | |||||
Cabinet Material | Die-casting Aluminum | |||||
Cabinet Weight | 7.5kg/panel | |||||
Operating System | Windows (Win7, Win8, etc.) | |||||
Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | |||||
