Mobile Big Screen Hire
Support full front & rear maintenance, realize fast disassembling in different occasions, better installation experience.
Product Introduction
Introduction
This is an application that can project the screen of the smartphone to the big screen, so that users can watch the contents of the mobile phone on the big screen. Such applications are widely used in the fields of home entertainment, business presentations, education and training. Secondly, Mobile Big Screen Hire can wirelessly project the mobile phone screen to large-screen devices such as TVs and projectors, and realize it through WiFi, Bluetooth and other transmission methods. During the projection process, the content of the mobile phone screen can be zoomed, rotated, and various operations can be performed to meet the needs of users. Finally, our slave products also support multi-screen interaction. Users can control the content on the large screen through the mobile phone screen and perform interactive operations, making viewing more convenient and comfortable. For example, during commercial presentations, the speaker can control the slides on the projector through a mobile phone, and switch content at any time to improve the display effect; during home entertainment, family members can jointly control TV programs through mobile phones to achieve family interaction.
Feature
The increase in screen resolution has had a noticeable impact on performance. The Mobile Big Screen Hire usually have a higher resolution, such as 1080p or higher, which means that the phone needs more processing power to process the image. Second, we have a decent processor system, which increases the number of pixels that need to be processed per second. This processor can provide higher operating speed and higher quality images faster. More critically, we have adopted more advanced RAM and larger storage capacity. This ensures that the system can process more data and store more data at the same time. Finally, we have a waterproof case that will not harm the internal parts.
 | Quick control box Removable power box, Hub collection which can go through the cabinet , with power and signal integrated in one box to make sure low failure rate , easy operation and maintenance . |
Maintenance way Magnetic modules support both front and rear side access. |  |

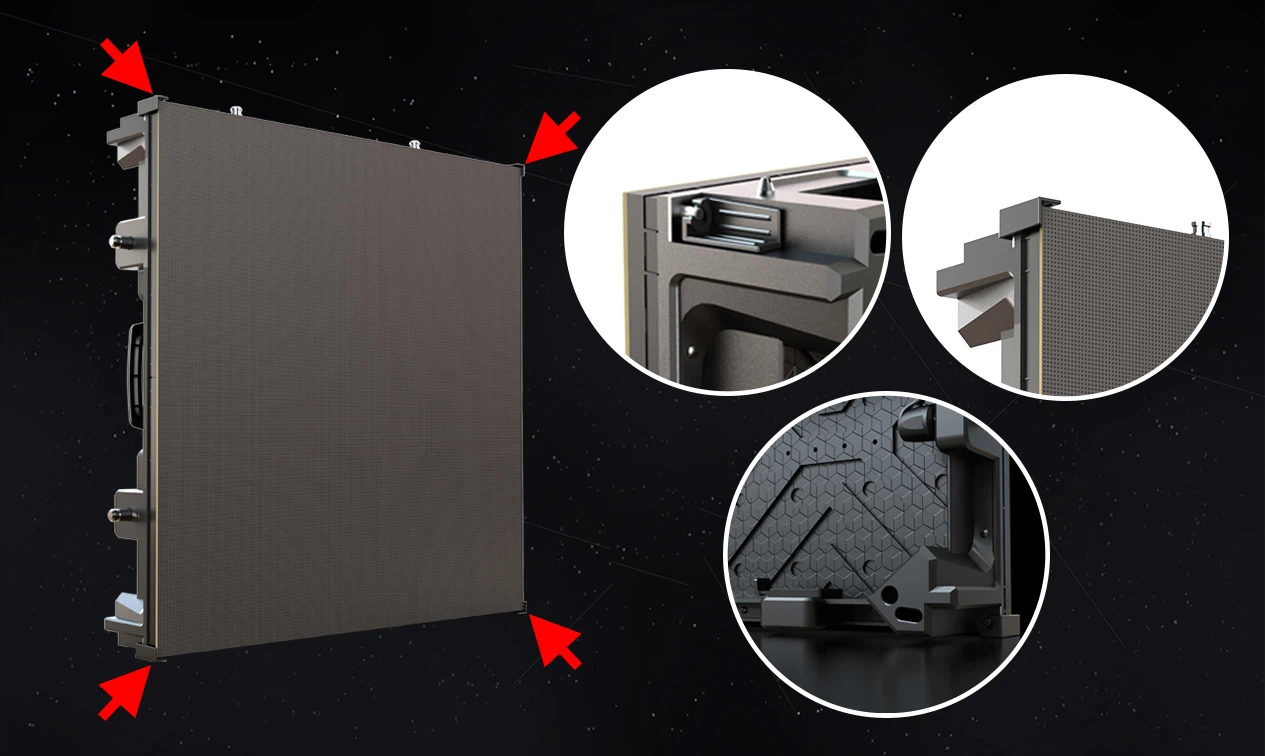

 | Anti-Collision design There are lamp guard flips at the four corners of cabinet to protect modules corners and led lamps during transit. |
Independent quick lock, single quick installation Support and single-person quick maintenance, the box body up and down, left and right locks can be quickly disassembled and assembled. |  |

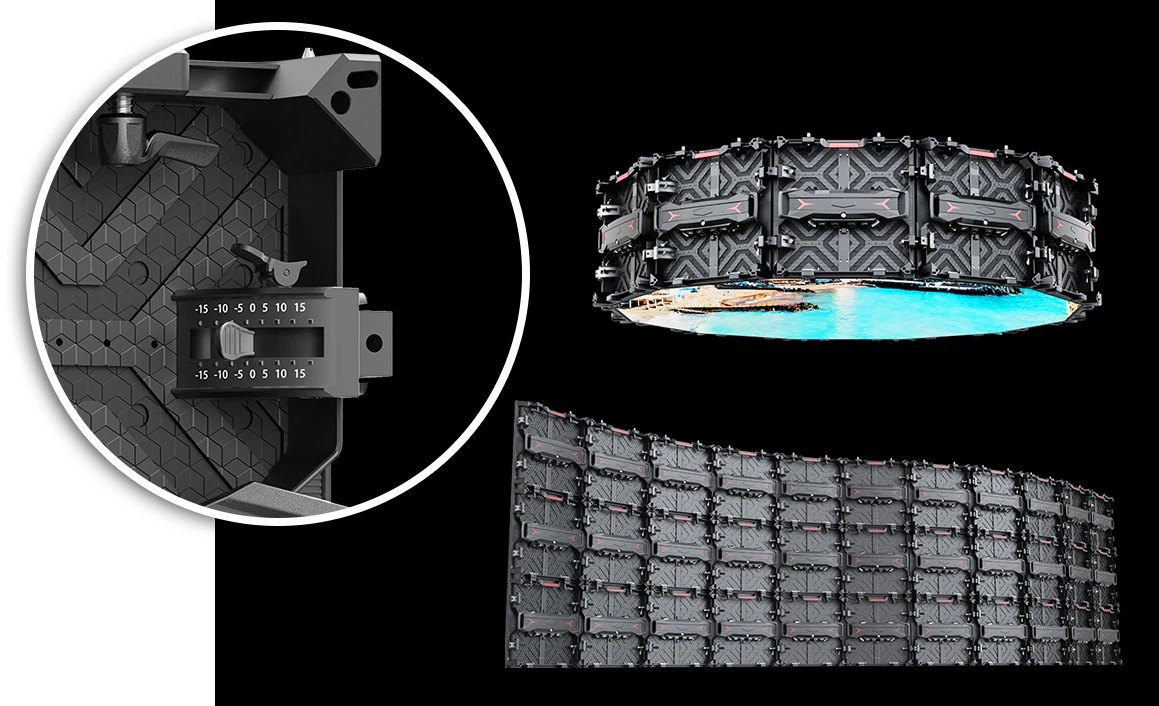

 | Arc connection lock (0°≤single lock adjustment angle≤15°) According to the needs of different radian screen bodies, various curved display screens can be easily constructed by using boxes equipped with radian connection locks. |

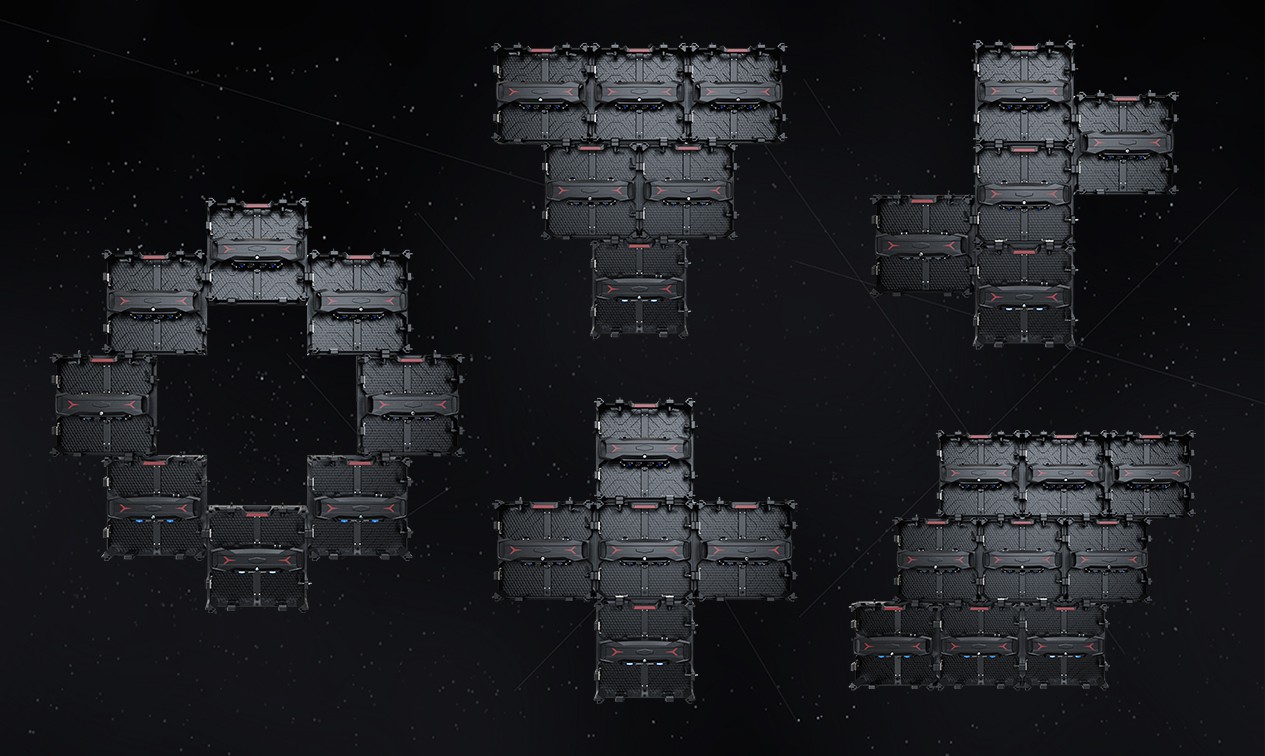

Variety of shapes, creative lease Perfect quick-lock connection structure, diversified cabinet splicing styles, infinite possibilities for creative screen design. |  |

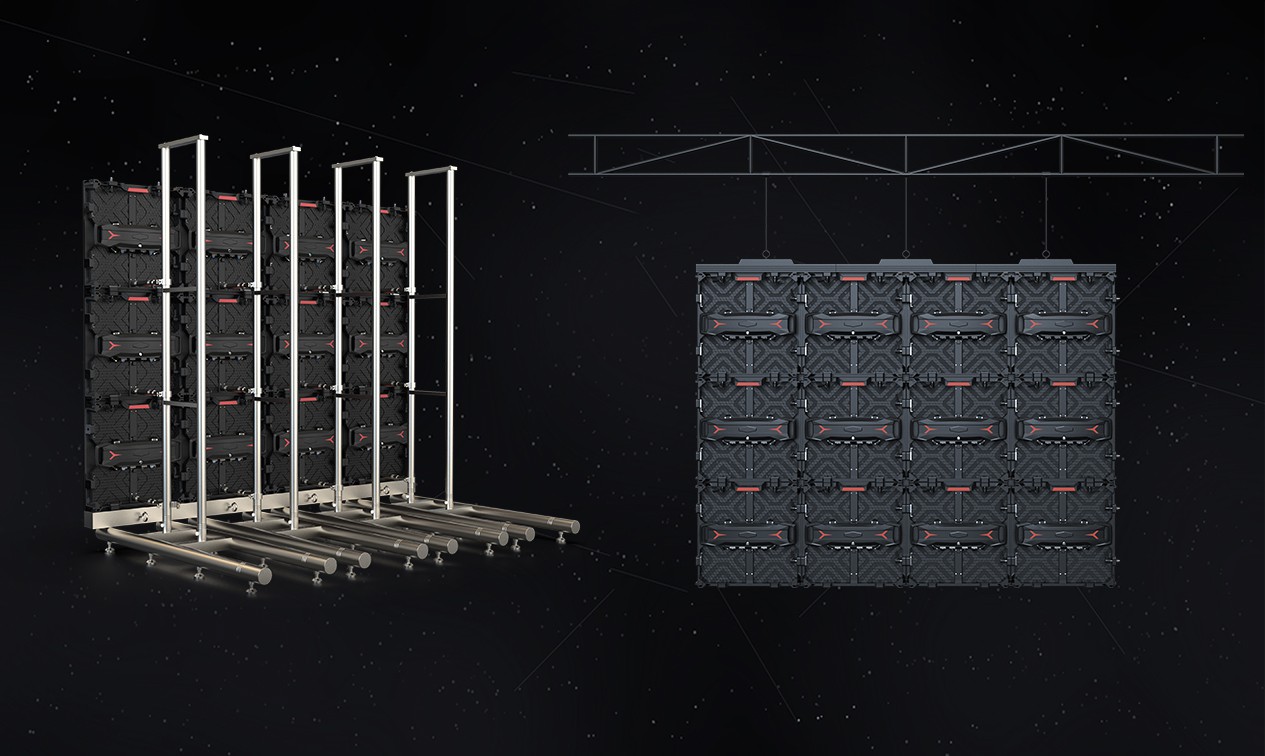

 | Diversified installation structure It supports a variety of installation structures and is compatible with all common rental cabinet installation forms, such as hoisting screens, steel structure day-frame screens, etc. |
Item | P1.9 | P2.6 | P2.9 | P3.9 | P4.8 | P5.9 |
Pixel Pitch | 1.953mm | 2.604mm | 2.976mm | 3.906mm | 4.807mm | 5.952mm |
LED Type | SMD1212 | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD2727 |
Module Resolution | 128dots × 128dots | 96dots × 96dots | 84dots × 84dots | 64dots × 64dots | 52dots × 52dots | 42dots × 42dots |
Driving Mode | 1/32scan | 1/16scan or 1/32scan | 1/14scan or 1/ 21scan | 1/16scan or 1/8scan | 1/13scan or 1/7scan | 1/7scan |
Module Pixels | 16,384dots | 9,216dots | 7,056dots | 4,096dots | 2,704dots | 1,764dots |
Module Size | 250mm × 250mm | 250mm × 250mm | 250mm × 250mm | 250mm × 250mm | 250mm × 250mm | 250mm × 250mm |
Cabinet Size | 500mm × 500mm | 500mm × 500mm | 500mm × 500mm | 500mm × 500mm | 500mm × 500mm | 500mm × 500mm |
Cabinet Resolution | 256dots × 256dots | 192dots × 192dots | 168dots × 168dots | 128dots × 128dots | 104dots × 104dots | 84dots × 84dots |
Pixel Density | 262,144dots/㎡ | 147,456dots/㎡ | 112,896dots/㎡ | 65,536dots/㎡ | 43,264dots/㎡ | 28,224dots/㎡ |
Minimum Viewing Distance | ≥1.9m | ≥2.6m | ≥2.9 m | ≥3.9 m | ≥4.8 m | ≥5.9m |
Brightness | 4,000nits | |||||
IP Grade | IP65 | |||||
Refresh Rate | 1,920Hz～3,840Hz | |||||
Gray Scale | 13bits～24bits | |||||
Viewing Angle | H:160° / V:160° | |||||
Maximum Power Consumption | 800W/㎡ | |||||
Average Power Consumption | 230W/㎡ | |||||
Input Voltage | AC110V～AC220V @ 50Hz / 60Hz | |||||
Operating Temperature | ﹣20℃～65℃ | |||||
Operating Humidity | 10%～90% | |||||
Cabinet Material | Die-casting Aluminum | |||||
Cabinet Weight | 7.5kg/panel | |||||
Operating System | Windows (Win7, Win8, etc.) | |||||
Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | |||||
