Waterproof High Definition Led Wall
P10 Outdoor display, die-cast aluminum body, high quality, simple appearance, design sense. Support P10 super dot spacing module, high brightness, high contrast, accurate color display, large viewing Angle, comfortable viewing experience, no eye damage, high fidelity picture quality.
Product Introduction
Products Description
P10 Outdoor display, die-cast aluminum body, high quality, simple appearance, design sense. Support P10 super dot spacing module, high brightness, high contrast, accurate color display, large viewing Angle, comfortable viewing experience, no eye damage, high fidelity picture quality.
Product feature
An immersive display experience
Brightness:6500nits~10000nits
120°/120° Ultra-wide field of vision
Pixel Pitch:10mm
Module Size: 320mm×160mm
IP65 level protection guarantee
Stadium led screen adopts high quality conformal coating, so the component is effectively moisture-proof and dust-proof. Therefore, the screen can be used in severe indoor and outdoor environment.

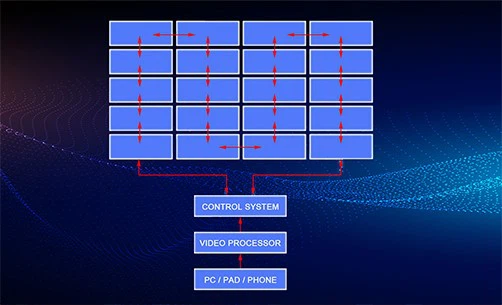

Power supply, signal double backup
Power supply, signal transmission dual backup system, dual channel free transmission, even if there is a line failure, it can ensure the normal picture.
High refresh rate
1,920Hz～3,840Hz ultra-high refresh rate, smooth picture, no afterimage when taking pictures, and comfortable viewing experience.
usage scenario
Professional venue display screen, suitable for building all kinds of brand sponsorship screen, scoring screen, live screen.
Item | P6.67 | P8 | P10 |
Pixel Pitch | 6.667mm | 8mm | 10mm |
LED Type | SMD2727 | SMD2727 | SMD2727 |
Module Resolution | 48dots × 48dots | 40dots × 40dots | 32dots × 32dots |
Driving Mode | 1/6scan | 1/5scan | 1/2scan |
Module Pixels | 2,304dots | 1,600dots | 1,024dots |
Module Size | 320 × 320mm | 320 × 320mm | 320 × 320mm |
Cabinet Size | 960 × 960 × 110mm | 960 × 960 × 110mm | 960 × 960 × 110mm |
Cabinet Resolution | 144 × 144dots | 120 × 120dots | 96s× 96dots |
Pixel Density | 22,500 dots/㎡ | 15,625dots/㎡ | 10,000dots/㎡ |
Minimum Viewing Distance | ≥6m | ≥8m | ≥10m |
Brightness | 5,500nits～6,500nits | 5,000nits～5,500nits | 5,500nits～6,500nits |
IP Grade | IP67 | IP67 | IP67 |
Refresh Rate | 1,920Hz～3,840Hz | 1,920Hz～3,840Hz | 1,920Hz～3,840Hz |
Gray Scale | 13bits～24bits | 13bits～24bits | 13bits～24bits |
Viewing Angle | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° |
Maximum Power Consumption | 800W/㎡ | ||
Average Power Consumption | 280W/㎡ | ||
Input Voltage | AC220V ～ AC110V @ 50Hz / 60Hz | ||
Operating Temperature | ﹣20℃～65℃ | ||
Operating Humidity | 10%～90% | ||
Cabinet Material | Aluminum profile | ||
Cabinet Weight | 30kg/panel | ||
Operating System | Windows (Win7, Win8, etc.) | ||
Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | ||
